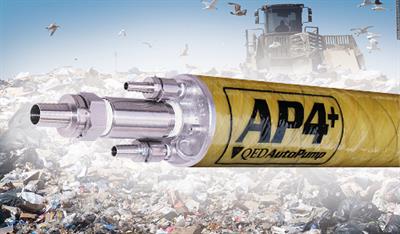

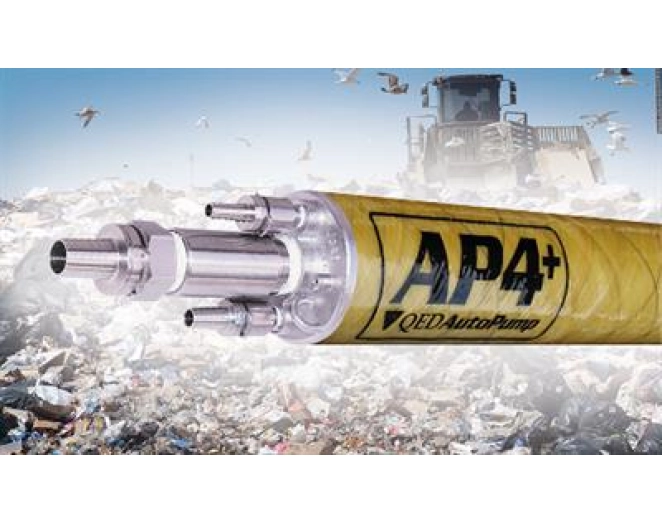

AP4 Submersible Pneumatic Pumps
AP4 Submersible Pneumatic Pumps
The AP4+ pneumatic pump is a pneumatic pump used in landfills and remediation sites, specifically designed to withstand tough conditions reliably and safely.
These conditions include hydrocarbon remediation (LNAPL and dissolved phase), landfill leachate and methane condensate pumping, solvent cleaning (dissolved phase and DNAPL), suspended solids, sediments, corrosives and high viscosities, along with high temperatures and frequent starts and stops.
Available for rent
Do you have any doubts? Contact us and we'll help you.
Ask for information- Ask by the model:
- Pneumatic pump AP4+ short top loading stainless steel ATEX
- AP4+ long stainless steel ATEX pneumatic pump top load No fittings
- Pneumatic pump AP4+ short bottom load leachate ATEX
- Pneumatic pump AP4+ long bottom loading leachate ATEX
- Pneumatic pumpA P4+high viscosity bottom load
- Pneumatic pump AP4 + high viscosity bottom load ATEX
AP4 Pumps are equipment designed for groundwater sampling and extraction, especially in monitoring wells, piezometers, and environmental applications. These compact and robust pumps allow efficient water extraction from moderate depths, offering a constant and safe flow for representative sample collection.
Manufactured with corrosion-resistant materials such as stainless steel and high-durability PVC, AP4 pumps are ideal for demanding work environments, including slightly turbid waters or those with sediments. Their modular design facilitates maintenance and installation, while their simple operation makes them suitable for field technicians, environmental laboratories, and hydrogeological consultancies.
AP4 pumps are widely used in environmental monitoring, hydrogeological studies, and water quality control, providing reliable and consistent results even in repetitive operations or at multiple sampling points.
The AutoPump AP4+ is ATEX certified for Zone 0.

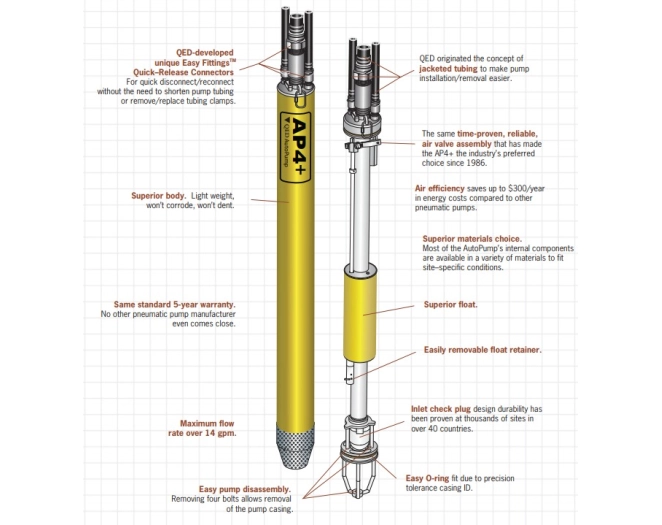

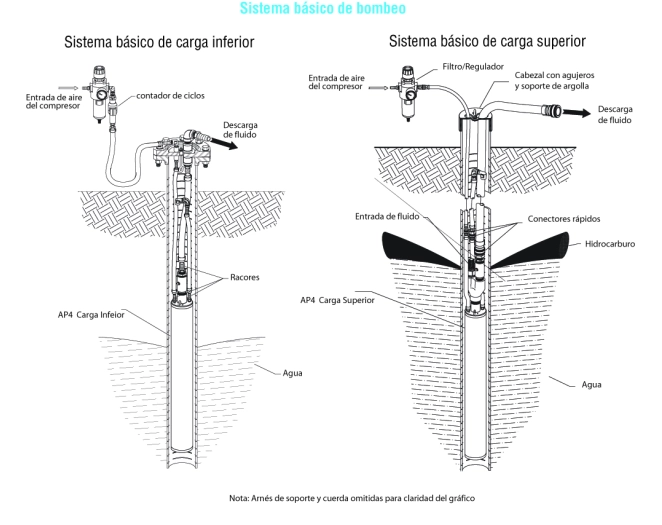

• The pump provides positive air displacement with a top and bottom filling design.
• The short and long lengths meet different work requirements.
• The product can be used from approximately 90 meters.
• 5-year warranty.
Application Limits
- Maximum Temperature: 82°C (180°F)
- pH Range: 4-9
- Solvents and Hydrocarbons: Gasoline, diesel, JP1-JP6, BTEX, MTBE, Leachates
Options (depending on connection and availability):
- Quick connector kits in brass or stainless steel.
- Connection kits for hose and pipe.
- Conversion kits for top load to bottom load and vice versa.
Piping
- We provide the necessary piping and connections.
Depending on the model, the pumps are designed for major pumping challenges with:
- Hydrocarbons
- Solvents
- Suspended solids
- Leachates
- Extreme temperatures
- Viscous liquids
- Frequent stop and start cycles
The control mechanism of the compressed air valves has been continuously improved to withstand the most severe pumping conditions.
Rental
- We offer pumps for rent.
- High flow and pumping capacity.
- Easy to disassemble and clean.
- Patented design offering reliability, durability, and proven performance.
- Handles certain solids, solvents, hydrocarbons, and corrosive conditions beyond the limits of electric pumps.
Models
-
Pneumatic pump AP4+ short top loading stainless steel ATEX
Ref. 5100000000184
-
AP4+ long stainless steel ATEX pneumatic pump top load No fittings
Ref. 5100000000185
-
Pneumatic pump AP4+ short bottom load leachate ATEX
Ref. 5100000000186
-
Pneumatic pump AP4+ long bottom loading leachate ATEX
Ref. 5100000000187
