The Solinst peristaltic pump, designed for field use, operates by suction allowing vacuum pumping for the recovery of liquids or gases by pressure.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe Solinst Peristaltic Pump (Model 410) is a portable, waterproof peristaltic sampling pump specifically designed for field use. Its mechanical peristalsis operation uses rotating rollers that compress the silicone tubing, creating a vacuum that gently moves liquids or gases from shallow wells and surface water bodies. This pump is ideal for sampling groundwater from shallow wells, surface water, or vapors, offering reversible flow and variable speed to adapt to different sampling conditions.
Compact, lightweight, and easy to use, the Solinst 410 connects to a 12 V DC power source using a 3 m cable with alligator clips, allowing for use with vehicle or portable batteries in the field. Its robust metal casing without openings and the transparent head for quick tube inspection ensure durability, easy maintenance, and high sample integrity by preventing cross-contamination.
- The speed is variable and reversible. It can be used with silicone tubing of 3/8” or 5/8” (10 – 16 mm).
- Uses an external 12 V DC battery and can pump from 10 milliliters per minute up to 3 liters per minute in purging mode.
- Power supply: 12 V battery, 3 to 5 A. The motor incorporates a speed controller.
- Flow rates: 60 ml/min (in sampling mode) to 3 l/min (in purging mode). The motor includes a 5 A fuse and reverse polarity protection.
- Pumping depth up to 10m depth (at sea level).
- Construction: Compact, robust, and resistant to moderate rain.
- Dimensions: 32 cm x 11 cm x 22 cm.
- Weight: 4.3 Kg.
- Ease: Compact and easy to use, controls are easily accessible.
- The metal case is robust, waterproof and has no grilles or openings.
- Possibility to add weights to the tubing for deeper pumping.
- Advantages:
· Compact, robust and lightweight.
· For greater sampling integrity, the sample only comes into contact with the hose. Replacing the hose between sampling points avoids the possibility of cross-contamination. To reduce the decontamination procedure duration, simply dedicate the low-cost hose used within the well.
· 3/8” connection possibility (optional) for low flow sampling up to 40 ml/min.
· The metal housing is extremely robust and waterproof. This makes the Peristaltic Pump simple to maintain and repair.
· The reversible action of the Peristaltic Pump is ideal for reversible flow when using the Drive Point Profiler (direct push piezometers).
- Sampling of groundwater in wells and piezometers
- Hydrogeological and environmental monitoring
- Water quality control
- Environmental remediation projects
- Laboratories, environmental consultancies, and universities

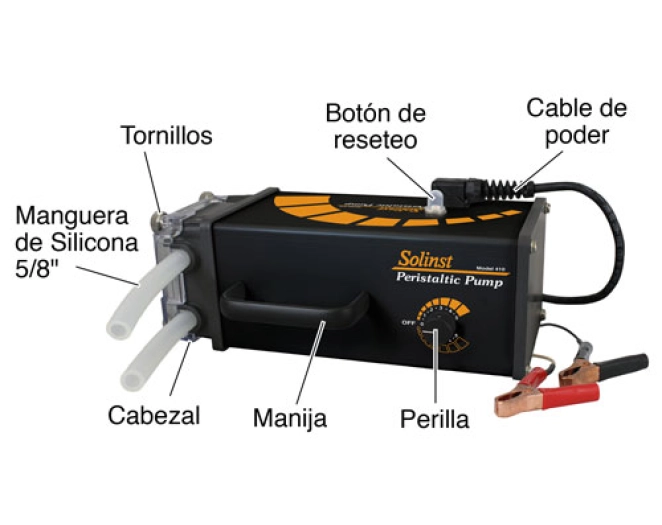

The Solinst Peristaltic Pump features a transparent head cover that allows for quick and convenient inspection of the internal head area and tubing before and during operation.
The head cover is easily removed for cleaning or hose replacement.
The hose guides in the head are designed to hold the hose securely in position during sampling, therefore, no additional clamps are required for the silicone hose.

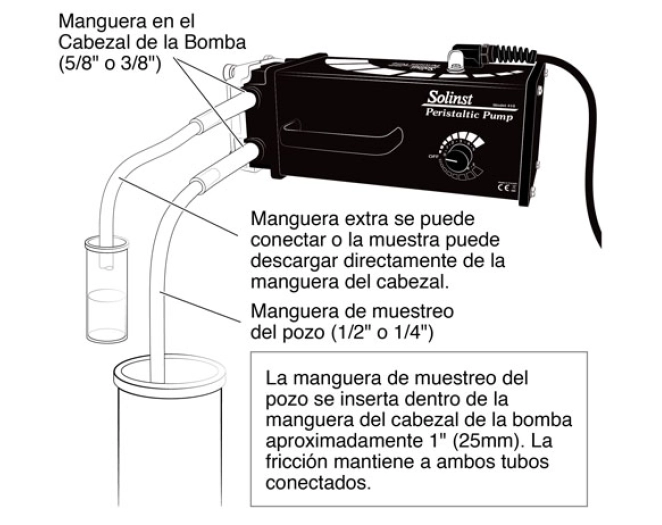

The pump's standard hose is 5/8" OD (16 mm) medical-grade silicone, which easily connects to a 1/2" OD (13 mm) hose for well sampling.
The adapter kit allows for the use of 3/8" OD (10 mm) hose for lower sampling flow rates. This hose easily connects to a 1/4" OD (6 mm) hose for well sampling.
- Compact, robust, and lightweight.
- For increased sampling integrity, the sample only contacts the hose. Replacing the hose between sampling points prevents the possibility of cross-contamination. To reduce the duration of the decontamination procedure, simply dedicate the low-cost hose used inside the well.
- Optional 3/8" connection for low flow sampling up to 40ml/min.
- The metal housing is extremely robust and water-resistant. This makes the Peristaltic Pump easy to maintain and repair.
- The reversible action of the Peristaltic Pump is ideal for reversible flow when using the Drive Point Profiler (direct push piezometers).
