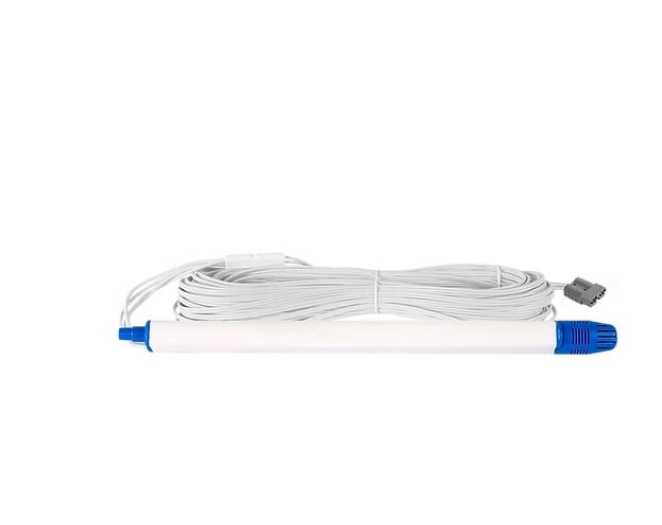

12V Pump. Supernova-120 up to 37m
12V Pump. Supernova-120 up to 37m
Reference:
2100000000264
12V Supernova-120 Pump.
For pumping between 1 and 37 m, includes electric cable with plug for connection to the regulator.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe 12 V Supernova-120 Pump is a 12 V DC submersible pump designed for purging and water sampling in monitoring wells, capable of working under demanding conditions and depths of up to ~37 m when connected to a 12 V battery via a specialized controller. Its smooth external design reduces the risk of jamming in narrow wells, while its robust and reliable construction makes it an efficient and durable solution for fieldwork.
The Supernova-120 can be used for both high-flow sampling and low-flow sampling techniques using a flow-regulated controller, allowing speed and extraction volume adjustment according to project needs. It is an ideal option for groundwater monitoring programs, remediation process control, and periodic well purging tasks.
- Dimension: Ø46 mm x L 660 mm.
- Compatible with inner diameter tube Ø9.5 mm or 13 mm.
- Designed for use with 12 V power and control systems.
- Mobile installation.
- Drilling/well specificity: diameter < 50 mm.
- Use: sampling, purging, and low-flow sampling.
- Maximum head height (MHH): 37 meters.
- Dimensions: Ø 46.2 x L 660.4 mm.
- Maximum power consumption: 600 W.
- Maximum current consumption: 40 A.
- Connection: Ø 11/14 mm.
- Supplied with durable field-use cable.
- Impeller construction: polyacetal (POM).
- Motor shaft: stainless steel.
- Wiring: polyvinyl chloride (PVC).
- Seal: nitrile.
- Warranty: pump 60 days and flow controller 6 months.
- Great pumping capacity for greater depths.
- High reliability in demanding fieldwork.
- Compact design that prevents clogs in narrow wells.
- Compatible with high and low flow sampling.
- Easy installation and use in 12 V mobile systems.
- Robust construction for a long service life.
