MP1 Submersible Pump 60m
MP1 Submersible Pump 60m
Reference:
2100000000253

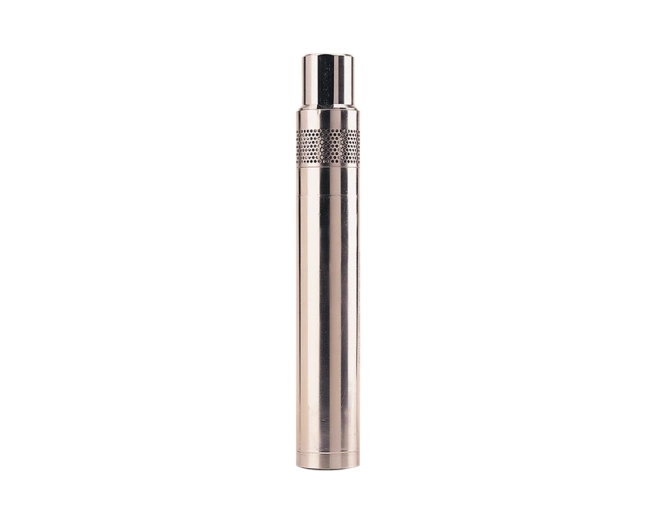

The MP-1 is a 2" submersible pump used for purging, groundwater sampling of contaminated sites, water quality monitoring, as well as other industrial and environmental applications.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe MP1 60 m Submersible Pump is designed for efficient water extraction from deep wells in hydrogeological, environmental, and industrial applications. Its submersible construction allows it to operate directly within the water, providing reliable and consistent performance at depths of up to 60 meters.
Made with corrosion and wear-resistant materials, the MP1 ensures durability even in demanding conditions. It is ideal for groundwater sampling, monitoring wells, piezometers, and deep reservoirs, ensuring a stable and safe flow for obtaining representative samples or for general pumping.
The MP1 Submersible Pump is widely used by environmental consultants, laboratories, field technicians, and industries, providing efficiency, ease of operation, and reliability in every extraction.
Availability:
Several standard kits are available for purging and sampling monitoring wells at depths of 30 to 90 m.

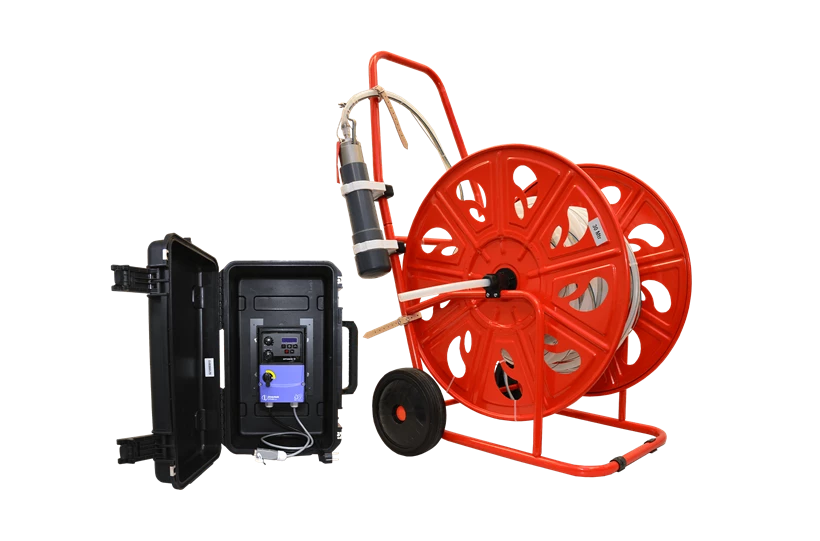

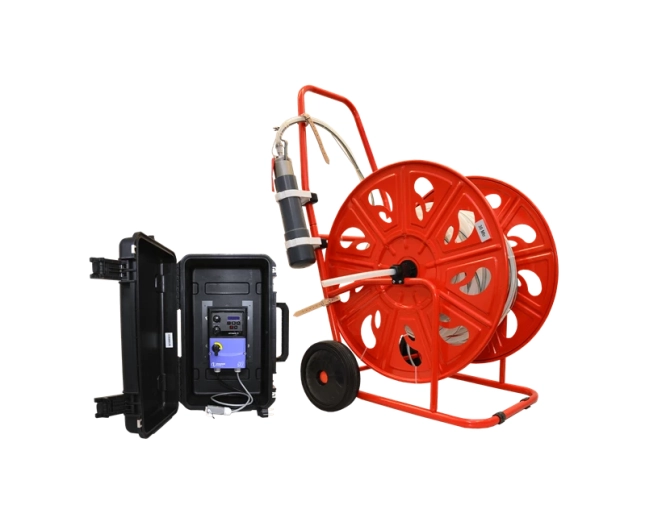

Among other elements, the standard sets contain: a Grundfos MP 1 submersible pump, a cooling jacket, a service kit, a frequency converter, a suspension cable, a tube with connection, and a hose reel cart; the set materials are fully assembled.
- Full load capacity: 0.5 HP/220V/3 PH/400 Hz/5.5A.
- Maximum current (SFA): 5.5 amps.
- Motor protection: Thermal overload.
- Current overload: Built into the MP 1 frequency converter.
- Minimum ambient fluid temperature: 32°F (0°C).
- Maximum ambient fluid temperature: 35°C (95°F).
- Motor lubricant liquid: Deionized water (DI).
- Dimensions (pump and motor): 28.7 cm long x 4.6 cm deep.
- Net weight (pump and motor): 2.5 kg (5.5 lb), not including motor cable
- Monitoring wells and deep piezometers
- Groundwater extraction for environmental sampling
- Deep deposits and tanks
- Hydrogeology and environmental remediation projects
- Industrial and field pumping systems
The MP1 60fm Submersible Pump operates submerged in water, using an internal impeller driven by an electric motor to lift the liquid to the surface. Its design allows for a constant and stable flow, ensuring that the sample or extracted water retains its original characteristics.
Thanks to its robust construction and corrosion-resistant materials, the MP1 can operate continuously for long periods, providing efficiency, reliability, and durability in any deep pumping or sampling application.
- Complete stainless steel/PTFE pump for both purging and sampling of all parameters.
- Maximum lift of 90 m of water.
- Supplied with different lengths of PTFE cable, suspension cable, and flow-regulated piping.
- Various warnings protect the safety of the pump.
- Converter for converting 240-volt single-phase to 400-volt three-phase 0-400 Hz.
- Can be equipped with PTFE or PE tubes (various sizes).
- Operates on the power grid or with a 240-volt electronically regulated generator. Field-replaceable impellers.
