The 12V Solinst submersible pump is used to purge and obtain groundwater samples in monitoring wells.
The 12V Solinst submersible pump is capable of pumping groundwater up to 36.5 m deep, with flow rates of up to 13.5 L/min in shallow conditions.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe Solinst Model 415 12V Submersible Pump is a portable, efficient, and adjustable groundwater sampling and purging solution designed for field use in monitoring wells. Its compact and short design allows it to move easily within narrow wells without getting stuck, making it especially suitable for environmental, hydrological, and water quality control applications. The pump connects to a compact 12V controller that allows easy flow rate adjustment from low to high flows, providing the operator with full control over sampling.
This lightweight and versatile system supports sampling depths of up to 36.5m (120ft) and can achieve flow rates of up to 13.5 L/min (3.6 gpm) in shallow conditions. The pump is powered by a 12V direct current battery (such as an AGM or vehicle battery), allowing its use in locations without access to the power grid, ideal for fieldwork in wells or remote systems.
- The 12 V Solinst submersible pump is capable of pumping groundwater up to 36.5 m deep.
- Flow rates up to 13.5 L / min (3.6 US gpm) under shallow conditions. (see table)
- Very simple to operate and adjust to high and low flow.
- The pump design (6 "nominal) prevents jamming in wells that are not straight or plumb.
- Fits inside 2 "nominal OD Sched. 40 or 80 PVC pipe.
- The LED light indicates the status of the 12 V pump controller.
- Portable, compact, and lightweight system.
Specification of Submersible Pump 415 12V
Sampling depth: Up to 36.5 m (120 ft) below the ground surface
Flow rates: Up to 13.5 l / min (3.6 US gpm)
Pump cable length: 130 ft (40 m)
Pump cable weight: 3.5 kg (7.8 lbs)
Wet materials:
ABS pump body, 304 stainless steel motor, impeller and eyebolt, polypropylene discharge
spout and hose barb, nitrile / buna O-rings and seals, electrical
cable with PVC cover
Pump size: 4.78 cm OD x 13.97 cm long (1.88 "x 5.5")
Pump weight: 0.8 kg (1.8 lbs)
Controller size: 33 cm x 13 cm x 17 cm (13 "x 5" x 6.5 ")
Controller weight: 3.4 kg (7.5 lbs)
Controller cable length: 1 m (3.5 ft)
Power source: 12 V and 60 amp-hour or larger deep cycle AGM battery, vehicle or marine battery.
Required voltage: 12.5 V-15 V at source
Power draw: 20mA (when dial is OFF), 3A (dial is at 1) to 36A (dial is at MAX (10))
Max. Run time: Continuous, as long as the pump remains fully submerged during operation
- Monitoring wells and piezometers
- Groundwater extraction and temporary storage
- Environmental and hydrogeological sampling campaigns
- Laboratories, consultancies, and remediation projects
- Pumping in portable field systems

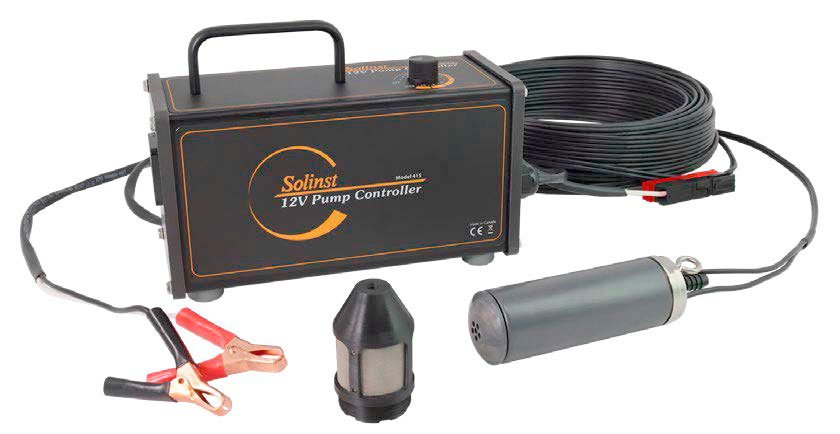

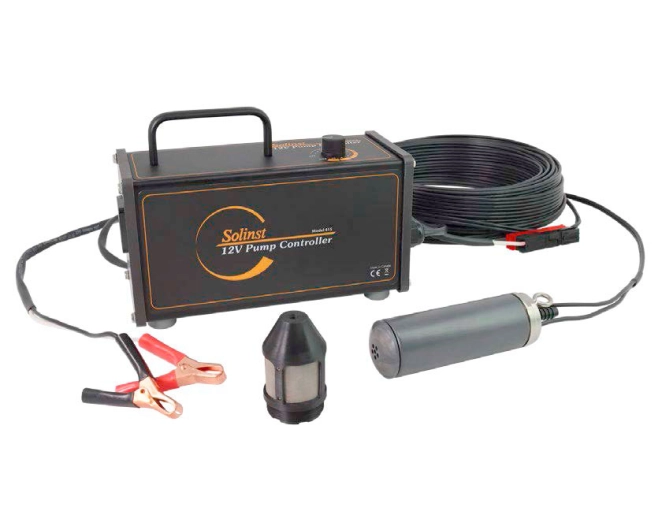

The 12V Submersible Pump System from Solinst includes the 12V submersible pump with cable, and the 12V pump controller.
The piping (sold separately). The power supply is provided by the user.
The 12V submersible pump cable simply connects to the 12V pump controller, which then connects to a 12V power source. The 3/8" (9.5 mm) ID LDPE sample tubing is inserted into the barbed fitting of the 12V pump.
The LED lights on the controller indicate the status of the 12V submersible pump system, including battery voltage, proper battery connection, normal operation, and maximum flow rate. It has an easy-reset circuit breaker (no fuse to replace).
Simply turn the dial on the 12V pump controller clockwise to increase the voltage to the controller, which spins the pump motor faster and increases flow rate.
- Easy operation and flow control: Adjust the sampling flow intuitively with the controller dial.
- Compact design for narrow wells: Its short form prevents jamming even in wells that are not perfectly vertical.
- Portable and lightweight: Ideal for fieldwork and sampling in remote locations without access to fixed electricity.
- High performance: Capable of purging and sampling at both high and low flow rates.
- Visual control: LEDs on the controller indicate operational and battery status.
