Monsoon 12V Plastic Pump
Monsoon 12V Plastic Pump
Reference:
2100000000101

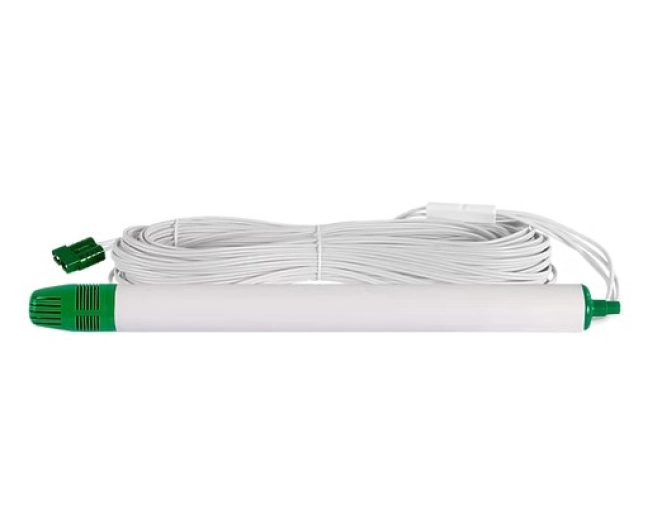

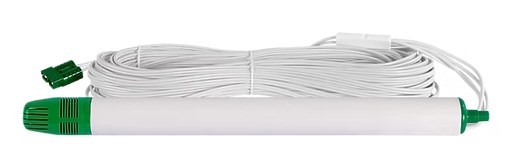

Monsoon 12V Pump.
For pumping between 1 and 36m, includes 39m of electrical cable with connector to regulator.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe 12V Monsoon submersible pump up to 37m is a DC submersible centrifugal sampling pump designed for use in monitoring wells, piezometers, and field environments where groundwater extraction is required for purging and analysis. Powered by a 12V DC battery via a Power Booster 2 controller, this pump can lift water from depths of up to 37m (120ft DTW) without overheating and with a robust design capable of operating under demanding conditions, including high water turbidity.
Its smooth and compact external design minimizes clogging within the well, and its economical and reliable construction makes the Monsoon a popular choice for environmental technicians, consultants, and field professionals who need a portable, energy-efficient, and adaptable pumping solution for both continuous sampling and pre-analysis purging.
- Dimension: Ø46mm x L 559mm.
- Connects to a 9.5mm or 13mm Ø inside tube.
- Connection to the “Power Booster 2” Regulator (PA-10700) or “Low Flow with Power Booster 2” Regulator (PA-10750) is required.
- Monitoring wells and piezometers up to 37 m
- Pure groundwater sampling
- Environmental and hydrogeological monitoring campaigns
- Laboratories, consultancies, and field technicians
- Temporary water extraction from deep reservoirs
- Mobile Installation Well/Drilling Specificity Diameter < 50 mm
- Use Sampling, purging and low-flow sampling Max head 37m Dimensions Ø 46.2 x L. 508 mm
- Power consumption (maximum) 450 watts
- Amperage consumption (maximum) 30A Tip Ø 11/14 mm Supplied with 40 m durable cable with green connector and crocodile clips
- Pump construction ABS
- Impeller construction Polyacetal (POM)
- Motor shaft construction Stainless steel
- Cable construction POLYVINYL CHLORIDE
- Joint construction nitrile
- Cost-effective solution Easy-to-use interface
- Consistent and reliable performance Ideal for groundwater purge, well maintenance, and sampling
- Equipped with durable cable, quick-connect connectors, and alligator clips for easy installation
- Capable of continuous operation in water without needing cool-down breaks
- Motor life up to 400 hours
