Geosub2 Pump and Controller
Geosub2 Pump and Controller
Reference:
2100000000265

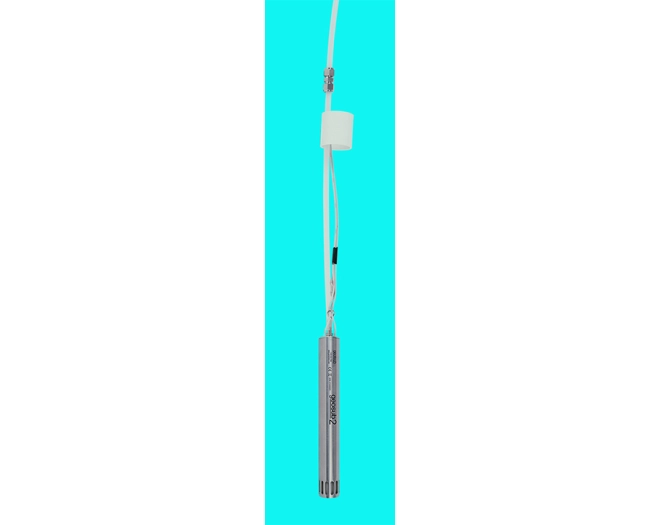

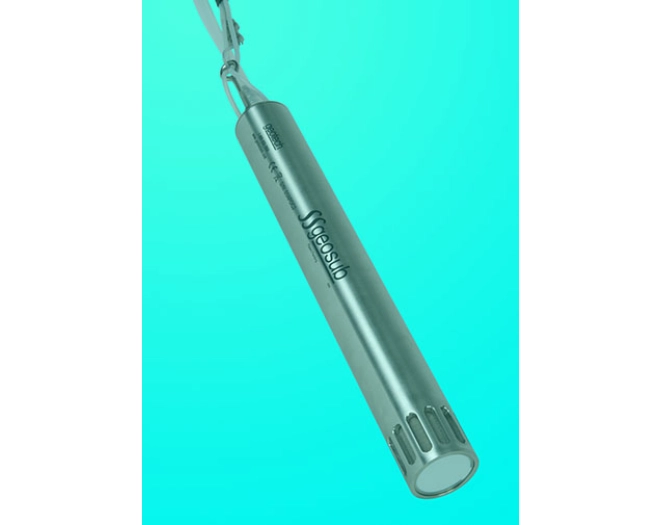

A single-stage stainless steel sampling pump in 12V allows confident sampling even in the most adverse well conditions.
Available in 30m, 45m, 60m
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe 12V GeoSub2 Pump is a submersible device designed for the extraction of groundwater and surface water in environmental, hydrogeological and industrial applications. With 12V DC power supply, it offers mobility, efficiency and reliability, ideal for fieldwork where autonomous and safe pumping is required.
Made with corrosion-resistant materials, the GeoSub2 allows direct operation within the liquid, ensuring constant and stable flow. Its compact design facilitates installation in wells, piezometers and tanks, while its pumping capacity is sufficient for environmental sampling and temporary water extraction.
The GeoSub2 is widely used by environmental consultants, laboratories and field technicians, ensuring representative samples and reliable operation in environmental monitoring and remediation campaigns.
Available in 30m, 45m, 60m
Geosub2 Pump Features
• The most versatile pump in the industry. Samples at depths up to 61 m.
• Low flow sampling of 10 ml/min
• User-activated test protection.
• Easy to clean.
• Optional mounting for greater depth
• Portable or dedicated reel systems available to meet your needs (optional)
Controller Features
• Converts AC voltage to a variable DC up to 300 watts.
• Short circuit protection for your safety
• Heavy-duty power cable for years of service
• 2-line x 16-character alphanumeric digital display
• Up or down press control
• Internal processor that saves the parameters of each well
• DC to AC inverter that can be connected to a vehicle battery
- PFAS Sampling
- Groundwater Sampling
- High-flow, Low-flow, and Purge Sampling
- Water Quality Monitoring
- Water Quality Assessment
- Monitoring Piezometers

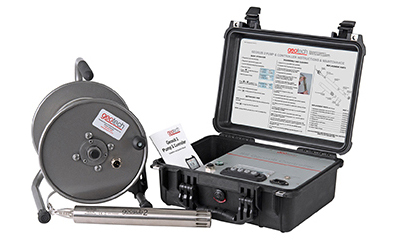

Controller Operation
The user interface is programmable and easy to use, offering precise control over flow rate during groundwater sampling. The specific conditions of each site can be easily saved and retrieved for more efficient recurring sampling.
The durable and easy-to-connect cables make it portable and easy to install.
Additionally, the control includes a user-programmable application for test protection.
Specifications
- Input Power Range
- 100-130 Volts AC
- 50/60 HZ 310 Watts
- 4.2 nominal maximum load amperes 115V AC
- 200-250 Volts AC
- 50/60 HZ 310 Watts
- 2.1 nominal maximum load amperes 230V AC
- Variable Output Power 0-46V DC less than 300 Watts
- Output Power with Max Voltage 10 maximum amperes
- Operating Temperature -20°F to 100°F (-29°C to 38°C) in ambient temp
- Humidity Up to 90% humidity
- Unit Weight 7.46 kg
- Unit Size 41cm L x 33cm W x 18cm H
- Input Protection 5A CB
- Reliable water extraction in field and laboratory
- Robust and durable design for demanding use
- Portable and easy to transport
- Quiet and stable operation
- Constant flow for environmental sampling or temporary pumping
- Ideal for monitoring and remediation campaigns
