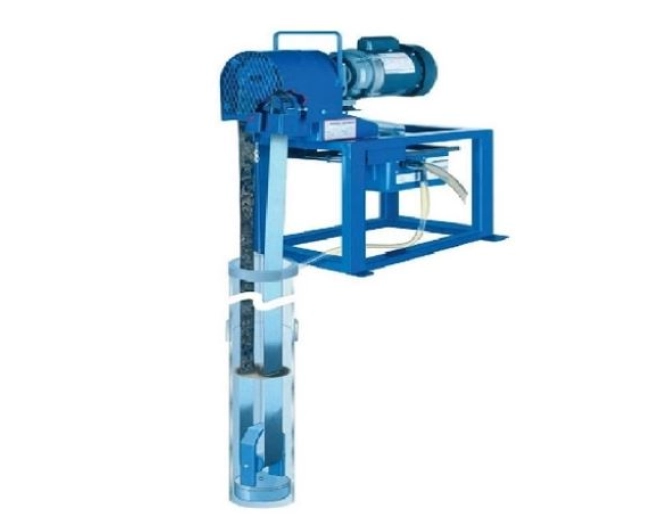

PetroXtractor PX-A belt skimmer rental
PetroXtractor PX-A belt skimmer rental
Reference:
1200000000284
The PetroXtractor belt skimmer system is a reliable and cost-effective equipment for removing oil, fuel, and other floating hydrocarbons from water where access to the fluid surface is limited. Ideal for removing floating oil and other hydrocarbon liquids from existing remediation or monitoring wells.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe Petroextractor belt skimmer is a system designed for the efficient recovery of floating oils and hydrocarbons on water surfaces, using a continuous belt mechanism that allows for selective extraction of the pollutant with minimal water uptake. This type of skimmer is especially effective in applications where continuous and controlled recovery is required, even with thin layers of hydrocarbon.
Manufactured with materials resistant to chemicals and corrosion, the Petroextractor offers high durability and reliability in environmental and industrial settings. Its compact design facilitates installation and operation in the field, enabling environmental technicians and remediation personnel to achieve consistent and representative results in prolonged operations.
The Petroextractor belt skimmer is ideal for remediation projects, spill control, and environmental monitoring, providing an effective and low-maintenance solution for the recovery of floating hydrocarbons.
- Small assembly and operation area.
- Chip-resistant powder-coated finish
- Custom belt lengths and materials
- Easy to mount on a flat surface
- Oil and fuel-proof belt and wipers
- Weighted and tethered tail pulley • Quick cleaning with minimal maintenance.
- Can be customized to application needs
- The oleophilic belt is designed to operate in extreme conditions and withstands temperatures up to 100°C (A.I.)
- The water pH can range from 6 to 10. The Abanaki PetroXtractor comes with a head pulley guard, adjustable wiper brush assembly, foam belt, rear pulley, fractional hp, 110 VAC, 60 Hz gear motor, and assembly/maintenance instructions. The equipment motor is a TEFC fractional hp, 115 VAC, single-phase, 60 Hz gear motor, including a 245 cm cable with an electrical plug.
- Optional: 50 Hz; 3 phases; explosion-proof; 12 VDC; and pneumatic.
- Recovery of oils and floating hydrocarbons
- Environmental remediation of water bodies
- Spill control and cleanup
- Environmental and industrial monitoring
- Field operations and long-term projects
The oleophilic belt is composed of a flexible polymer that allows it significant mobility. A counterweight is placed at the lower end of the belt to tension it; this depends on the belt's length and the product's viscosity. Thanks to an additional motor and a pulley system, the belt is in continuous rotation, recovering the hydrocarbon through a selective methodology. Flow Rates The client will define the width and depth of the belt, which will depend on the required flow rates, the diameter of the piezometer, and the product's viscosity. Recovery Rates Belt Width Recovery Rate 2.5 cm (for 1 inch) 11 L/h 5 cm (for 2 inches) 23 L/h 10 cm (for 4 inches) 45 L/h
- Allows existing monitoring wells to be used as recovery wells.
- The portable unit can be easily transported from one site to another.
- A single unit separates oil and lifts it up to 100 feet without a pump.
- Recovers very little water (unlike other skimmers).
- Maintains skimmer process efficiency with fluctuating water levels.
- The tail pulley is secured to the frame to prevent accidental loss.
- Easy assembly, quick cleaning with minimal maintenance.
- Belt materials suit any application.
