The Tramuntana XL is a portable power and control case compatible with 12 V PROACTIVE® submersible pumps, designed for groundwater sampling campaigns and demanding fieldwork.
Do you have any doubts? Contact us and we'll help you.

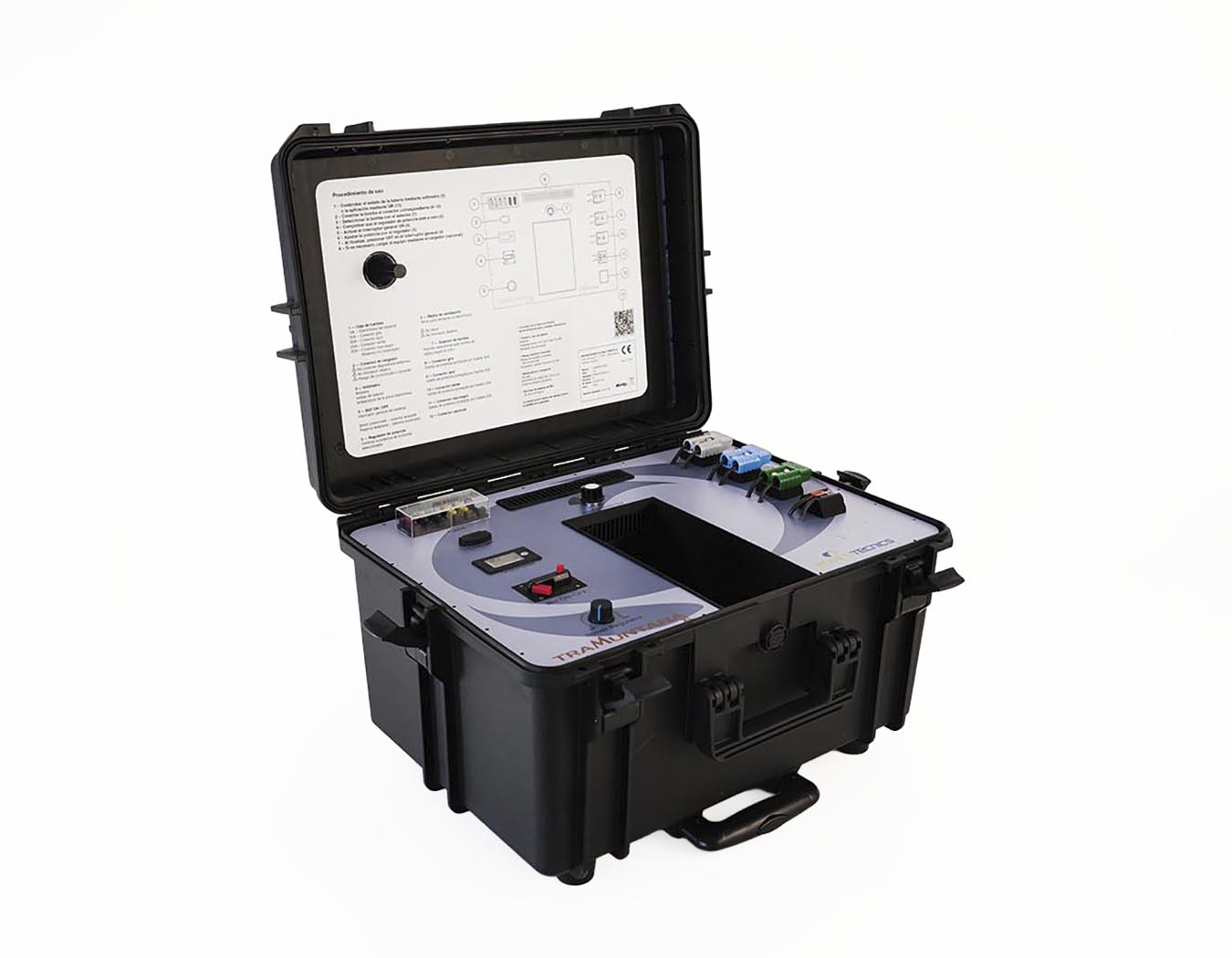

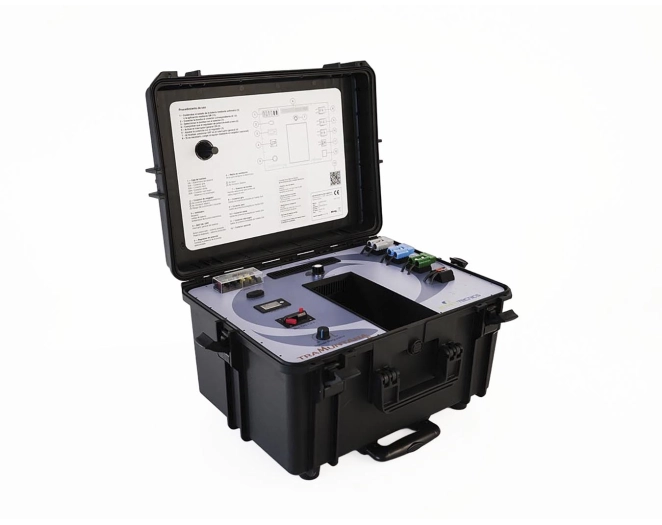

Ask for informationEnvirotecnics presents the Tramuntana XL, a portable battery system for powering and controlling 12 V groundwater sampling pumps. Integrated into a watertight case, it combines energy storage and pump regulation in a single portable solution, designed for field campaigns where autonomy, reliability and safety are critical.
Compatible with PROACTIVE® pumps, the Tramuntana XL allows users to power, regulate and control submersible pumps during groundwater sampling, field pumping, environmental monitoring and remediation operations.

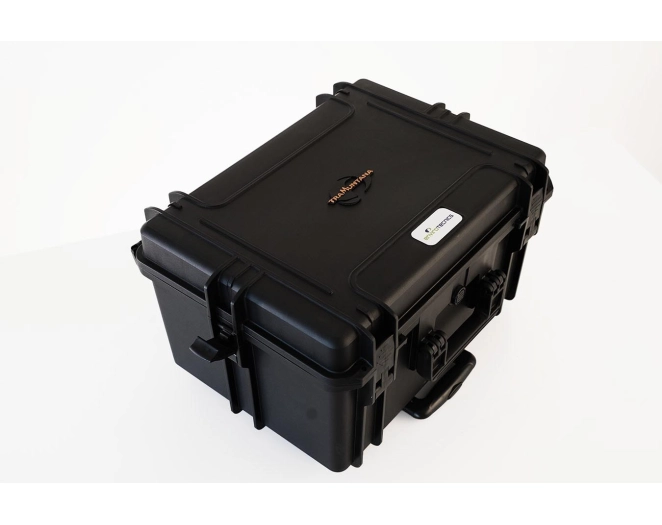

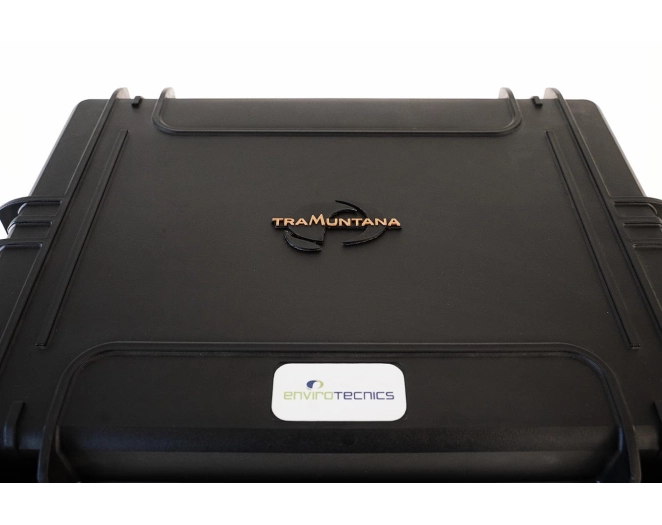

Built into a reinforced watertight case with IP67 protection, it ensures safe operation even in harsh environmental conditions. Its robust and portable design makes it easy to transport and use in the field, especially during long sampling, environmental monitoring and remediation campaigns.
Equipped with two high-capacity 12 V LiFePO₄ lithium batteries, the Tramuntana XL enables long working days without the need for an external power supply.

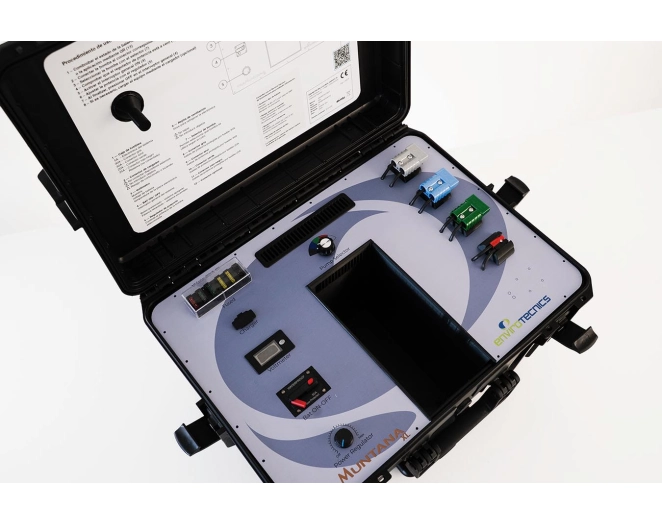

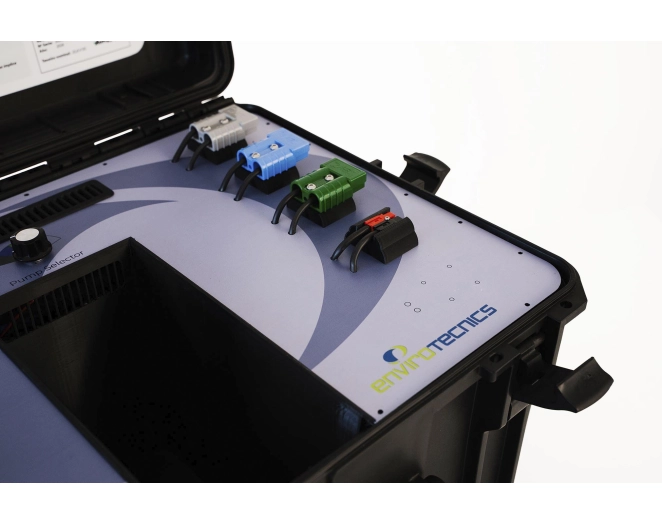

Its intuitive control system incorporates colour-coded power connectors and a pump model selector to enable fast and safe connection, reducing operational errors in the field.
It also includes pump power regulation, flow control and battery status monitoring via Bluetooth app. These features help optimise energy consumption and provide real-time information on available autonomy. The Tramuntana XL is a professional solution for environmental consultants, remediation companies, laboratories and technical teams working in the field with submersible pumps up to 24 V.
- Reinforced watertight IP67 case (555 × 428 × 306 mm)
- Two 12.8 V – 50 Ah LiFePO₄ batteries (25.6 V total)
- Colour-coded Anderson connectors
- Compatible with 12 V PROACTIVE® pumps using PA10700, 10750, 10800 and 10850 controllers

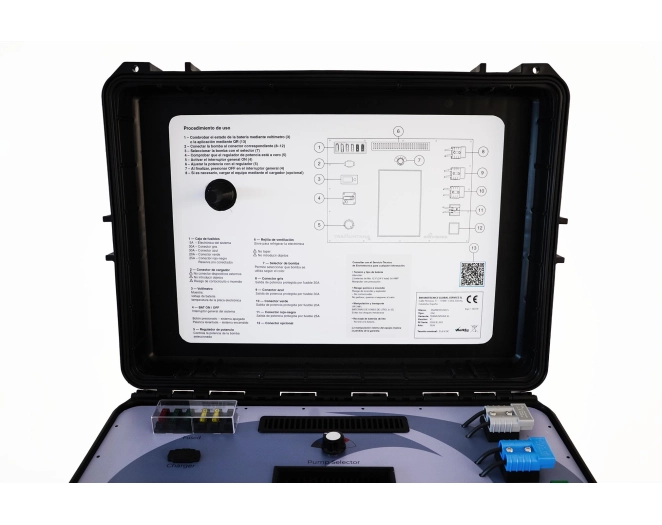

- Pump model selector

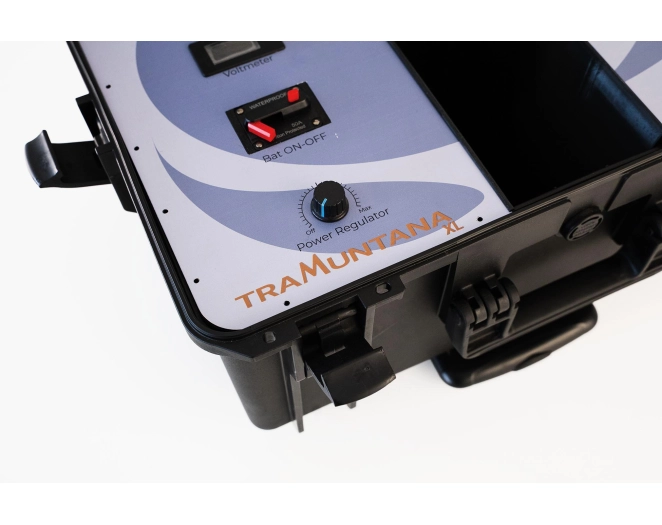

- Power regulator and low-flow flow rate controller
- Integrated digital voltmeter
- Bluetooth app for monitoring and autonomy estimation
- 50 A main fuse and individual fuses per pump
- Automatic disconnection system when closing the case
- Weight: 15.5 kg

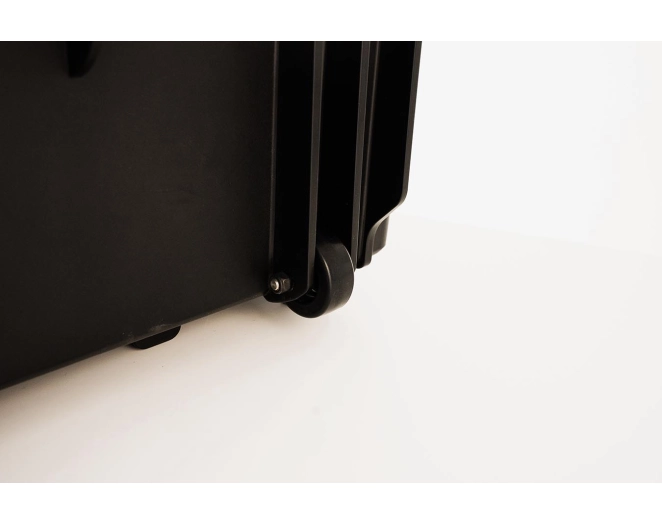

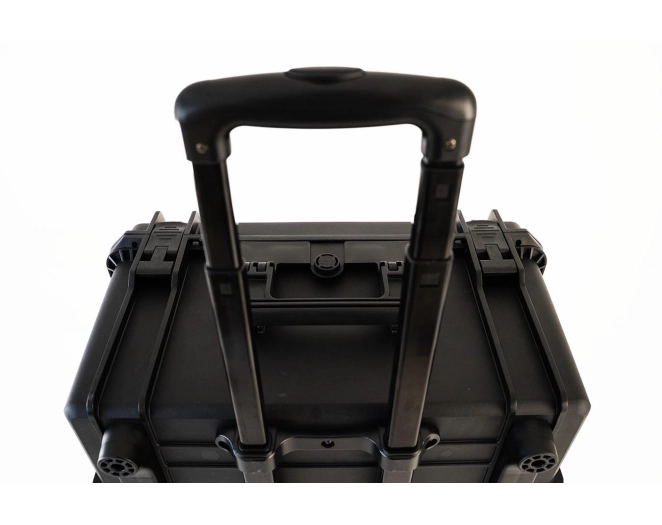

- Options: wheels with extendable handle and 24 V – 8 A battery charger
- Sampling and purging in wells and piezometers
- Hydrogeological tests
- Pumping in remote or difficult-to-access areas
- Extended environmental monitoring campaigns
- Fieldwork for consulting firms and remediation companies
Opening the suitcase voids the warranty.
*Consult Envirotecnics Technical Service for any information.
Voltage and battery type
- Attention: 2 lithium batteries 12 V (24 V total)
- 50 AMP – Handle with care
Chemical and fire risk
- Risk of fire and explosion – Do not short circuit
- Do not puncture, burn or expose to heat
Handling and transportation
- UN 3481, LITHIUM ION BATTERIES, 9, (E)
- Avoid mechanical shocks
Lithium battery recycling. Do not throw in the trash.
The Tramuntana XL powers and controls 12V PROACTIVE® submersible pumps through a high-capacity internal battery system. The user selects the pump model using the color-coded selector and adjusts the power or flow rate according to the job requirements.
The Bluetooth app allows monitoring of the system status and estimation of the remaining autonomy, ensuring efficient and safe use of available energy.
- Maximum field autonomy without need for electrical network
- Simple and intuitive use, even in demanding environments
- High resistance and waterproofing for outdoor work
- Precise control of flow and energy consumption
- Full compatibility with 12 V PROACTIVE® pumps
- Easy maintenance with batteries replaceable by technical service
