Portable battery system for powering and controlling 12 V groundwater sampling pumps | Tramuntana
Portable battery system for powering and controlling 12 V groundwater sampling pumps | Tramuntana
Reference:
2100000000282
The Tramuntana case is a waterproof power and control case for 12 V PROACTIVE® submersible pumps, equipped with a high-autonomy LiFePO4 battery, flow control, and Bluetooth monitoring, ideal for fieldwork in demanding environments.
Do you have any doubts? Contact us and we'll help you.

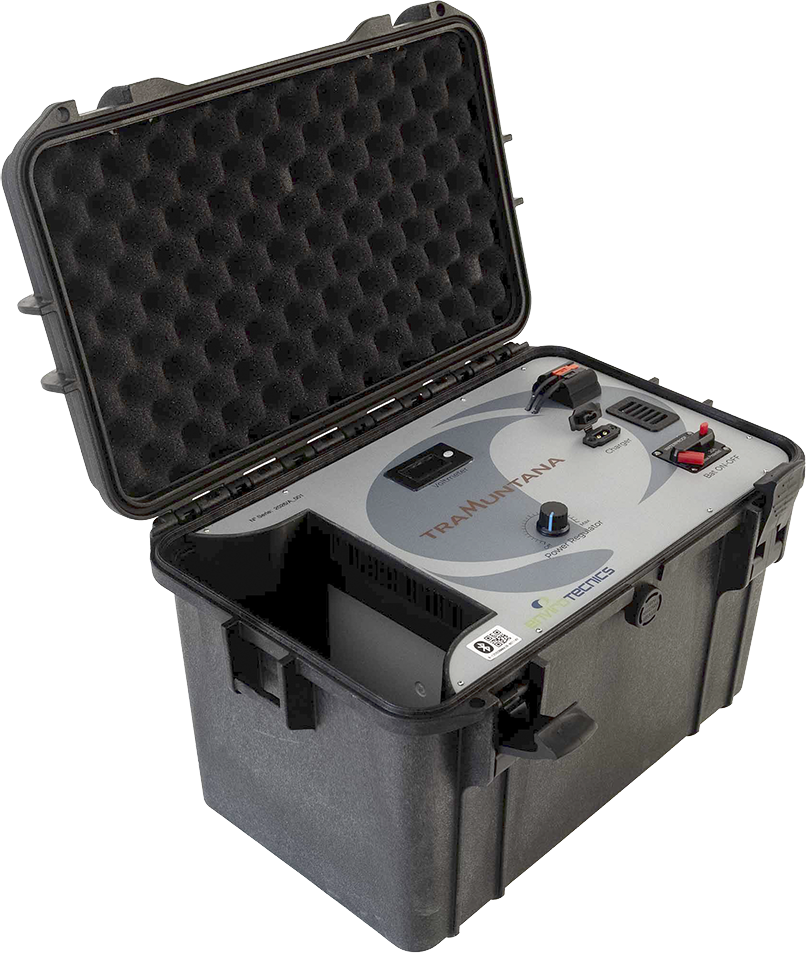

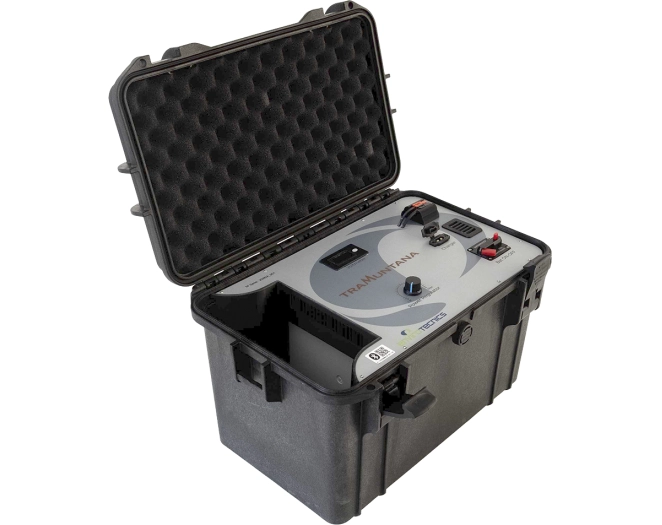

Ask for informationEnvirotecnics presents the Tramuntana, a portable battery system for powering and controlling 12 V groundwater sampling pumps. Integrated into a watertight case, it combines energy storage and pump regulation in a single portable solution, designed for field campaigns where autonomy, reliability and safety are critical.
Compatible with PROACTIVE® pumps, the Tramuntana allows users to power, regulate and control submersible pumps during groundwater sampling, field pumping, environmental monitoring and remediation operations.

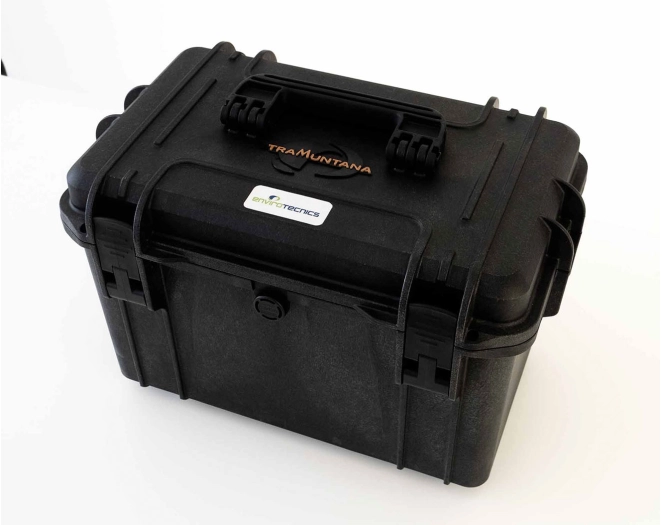

Built into a reinforced watertight case with IP67 protection, it ensures safe operation even in harsh environmental conditions. Its robust and portable design makes it easy to transport and use in the field, especially during long sampling, environmental monitoring and remediation campaigns.
Equipped with a high-capacity 12 V LiFePO₄ lithium battery, the Tramuntana enables long working days without the need for an external power supply.
It also includes pump power regulation, flow control and battery status monitoring via Bluetooth app. These features help optimise energy consumption and provide real-time information on available autonomy. The Tramuntana is a professional solution for environmental consultants, remediation companies, laboratories and technical teams working in the field with 12 V submersible pumps.
- Reinforced watertight IP67 case
- Dimensions: 456 × 290 × 319 mm
- 12.8 V – 50 Ah LiFePO₄ lithium battery
- Compatible with 12 V PROACTIVE® pumps using PA 10800 controller

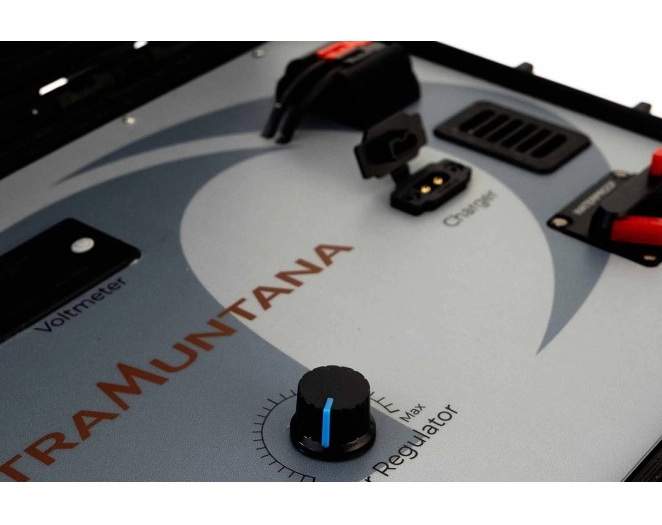

- Power regulator with low-flow control
- Integrated digital voltmeter
- Monitoring via Bluetooth app
- Automatic disconnection system when closing the case
- 20 A main fuse
- Battery replaceable by technical service
- Weight: 9.2 kg
- 12 V – 10 A battery charger optional
- Sampling and purging in wells and piezometers
- Hydrogeological tests
- Pumping in remote or hard-to-reach areas
- Prolonged environmental monitoring campaigns
- Fieldwork for consultancies, remediation companies, and environmental laboratories
Opening the suitcase voids the warranty.
*Consult Envirotecnics Technical Service for any information.
Voltage and battery type
- Attention: 2 lithium batteries 12 V (24 V total)
- 50 AMP – Handle with care
Chemical and fire risk
- Risk of fire and explosion – Do not short circuit
- Do not puncture, burn or expose to heat
Handling and transportation
- UN 3481, LITHIUM ION BATTERIES, 9, (E)
- Avoid mechanical shocks
Lithium battery recycling. Do not throw in the trash.
Supplies power to PROACTIVE® 12V submersible pumps through its internal LiFePO4 lithium battery. The user can adjust the pump's flow rate thanks to the integrated power regulator, adapting energy consumption to work requirements.
The digital voltmeter and Bluetooth app allow monitoring of the battery's status and estimating available autonomy. For added safety, the system automatically cuts power when closing the case, preventing accidental consumption.
- High autonomy in the field, ideal for prolonged work
- Maximum protection against adverse environmental conditions
- Precise flow control, optimizing energy consumption
- Simple and intuitive monitoring via Bluetooth app
- Full compatibility with 12 V PROACTIVE® pumps
- Robust, compact, and easy-to-transport design
