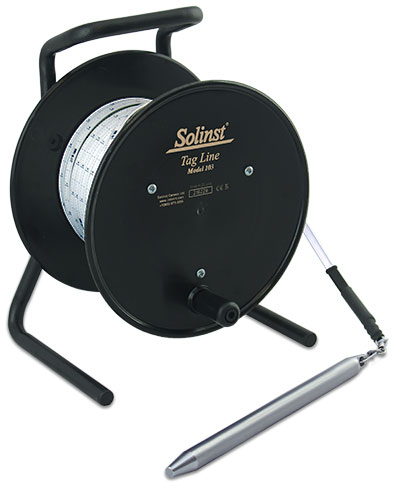

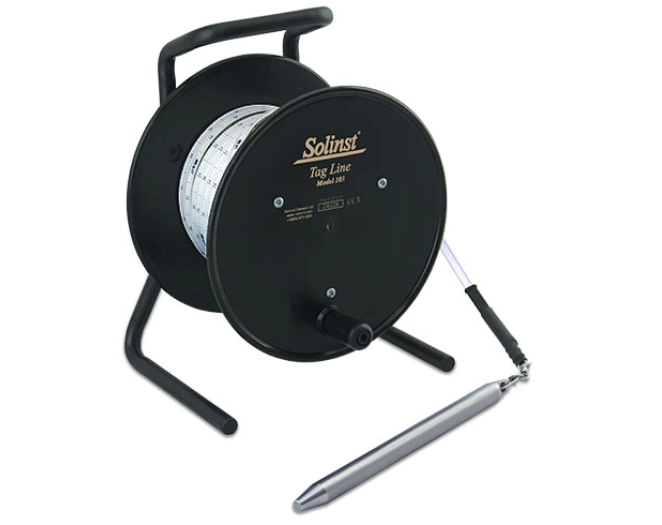

The Tag Line 103 is a field instrument designed to accurately determine the depth to the bottom of a well or borehole and the fill layers during installation. It consists of a marked laser cable or tape mounted on a robust reel with a carrying handle, brake, and weight support. The laser marking at regular intervals facilitates visible and continuous readings as the cable/tape is lowered or raised, allowing reliable and repeatable measurements in various field and work conditions.

Features

• Laser-marked cable or tape: Allows for clear and precise depth measurements throughout its entire length.
• Independent and durable reel: Facilitates the convenient and controlled deployment and retrieval of the cable or tape.
• Detachable plumb bob: The weight at the end indicates the bottom of the borehole and can be removed to use the line as support.
• Cable and tape options: Available in coated cable or flat tape versions, both designed to withstand intensive use.
• Tape guide included: Facilitates use over the edge of the well casing, protecting the cable or tape and improving reading accuracy.
• Lightweight and portable: Easy to transport and handle in the field.

Applications

• Measurement of well or borehole bottom depth.
• Determination of fill layer depth (sand, bentonite) during well installation.
• Secure support for deployment of portable pumps, samplers, and mechanical seals.
• Guide line for installing data loggers or sensors during tests and profiling.
• Continuous reading and monitoring in drilling projects, well construction, and environmental sampling.

Performance

1. Deployment: The laser-marked cable or tape is lowered from the reel until it reaches the bottom of the well or the desired measurement point.
2. Depth reading: When the weight reaches the bottom, the cable/tape becomes slack; it is gently withdrawn and the depth reading is taken from the laser marks.
3. Use as support: If the weight is removed, the cable/tape can serve as a support line for pumps, samplers, or other devices, maintaining the known depth mark.

Advantages

• Precise depth measurement: Laser markings offer clear and continuous references for measuring bottom depth or intermediate levels.
• Versatile use: Can be used for simple measurements as well as supporting equipment (pumps, samplers, mechanical seals) during installations.
• Easy to use: Its simple and robust structure allows for quick field operations without the need for complex tools.
• Multifunctional: The detachable plumb line converts the line into a reliable support for various instruments and accessories.
• Portable and durable: Ideal for frequent fieldwork, with an easy-to-handle reel and resistant materials
