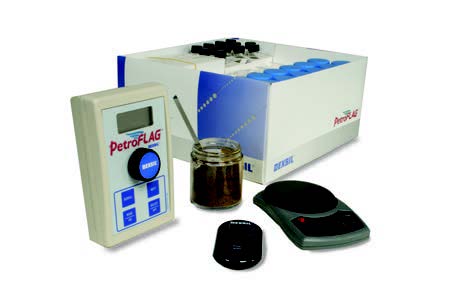

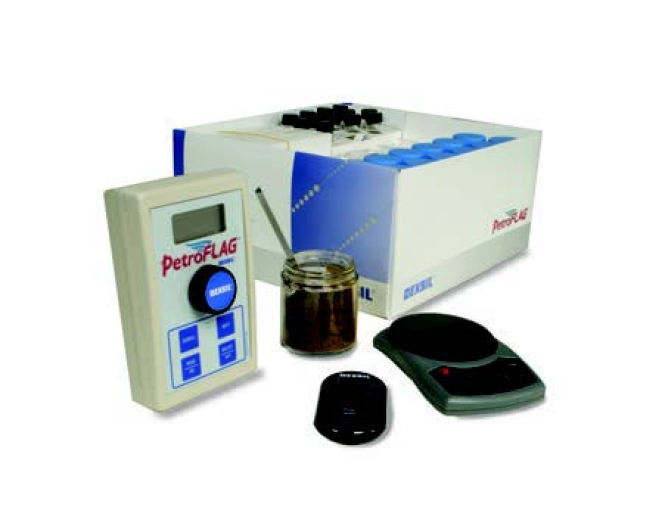

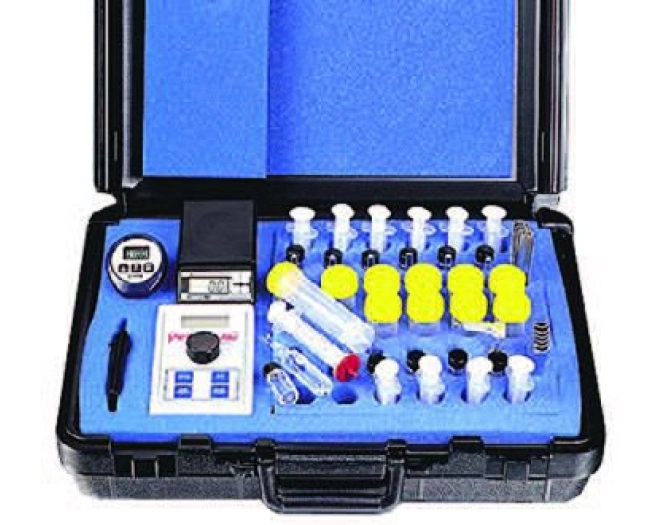

PetroFLAG analyzer system for TPH in soil
PetroFLAG analyzer system for TPH in soil
Reference:
4100000000002
PetroFLAG On-Site Test Kit for Soils with Pre-Dosed Reagents — Rapid Field Analysis of Total Petroleum Hydrocarbons (TPH) with Results in ppm and Built-In Calibration
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe PetroFLAG on-site soil test kit and reagents is a portable and quick solution for the determination of total petroleum hydrocarbons (TPH) in contaminated soils, ideal for environmental field analysis, pre-construction assessments, and soil remediation monitoring.
This kit allows for the quantification of the presence of fuels, oils, greases, and other total hydrocarbons without the need to send samples to a laboratory, providing results in parts per million (ppm) with simple procedures based on extraction, filtration, and turbidimetric analysis.
The test is conducted using a small amount of soil (for example, 10 g) and can be adjusted with high-range reagents when higher levels of contamination are expected. The system is ideal for field technicians, environmental consultants, remediation project managers, or quality control specialists in constructions who need quick and reliable information without relying on external laboratories.
- Analysis of total petroleum hydrocarbons in soil (TPH) without distinction between aliphatic and aromatic.
- Easy-to-use turbidity detection method for field use.

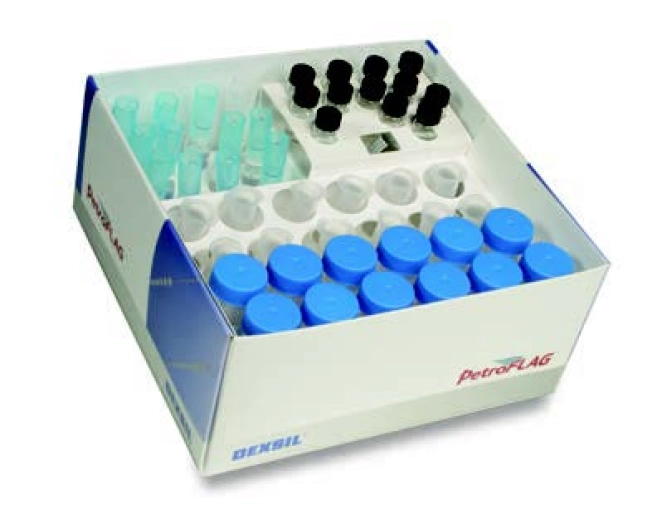

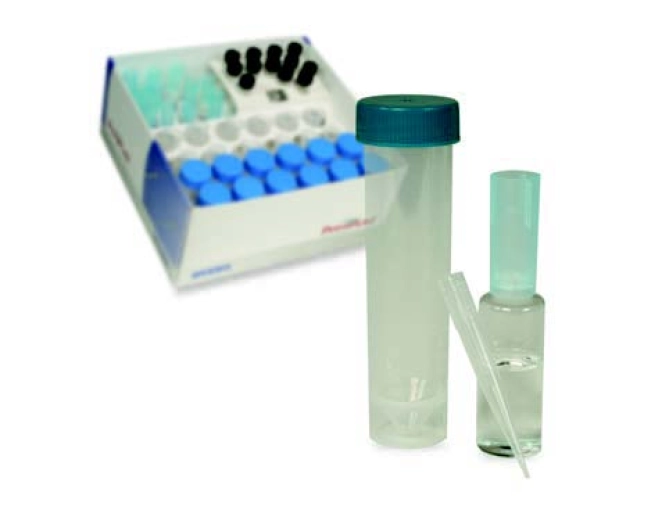

- Includes PetroFLAG reagents pre-dosed in glass ampoules for quality control.
- Packages available with 10 tests or 40 tests with calibration solutions.

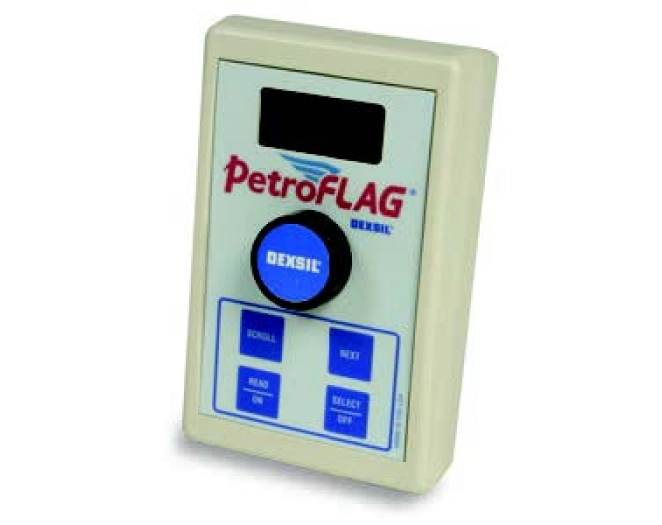

- Optional portable detector (PetroFLAG analyzer) compatible for direct ppm reading.
- Typical measurement range from ≈15 ppm to 2 000 ppm or more with high-range reagents.
- Measurement of total petroleum hydrocarbons (TPH) in contaminated soil.
- On-site evaluation prior to construction and remediation projects.
- Soil monitoring before, during, and after environmental cleaning processes.
- Environmental risk control and impact studies.
An analysis of a 10gr sample is performed in just three steps: Extraction, filtration, and analysis. It is quick and easy to calibrate using a reagent extract as 0 (zero) and a standard hydrocarbon of 1000ppm. The display guides the user through the calibration steps. A set of 10 standard calibrations comes in the case.
Quick and portable
The kit allows analyses to be carried out on-site without the need for a laboratory, with results in minutes.
Easy to use
The three-step procedure (extraction, filtration, and analysis) and pre-dosed reagents simplify sampling even for inexperienced personnel.
Wide measurement range
With the ability to use high-range reagents, the kit can measure from low contamination levels to high percentages of hydrocarbons.
Integrated quality control
Includes calibration solutions (zero and 1000 ppm standard) to adjust the analysis and ensure the reliability of the results.
Compatible with portable analyzer
Can be integrated with the PetroFLAG analyzer for direct and simple ppm value readings.
