Petroextractor belt skimmer
Petroextractor belt skimmer
Reference:
5200000000034

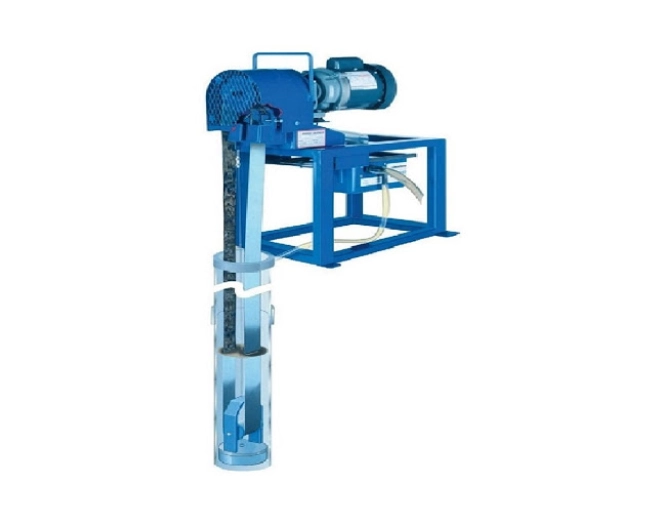

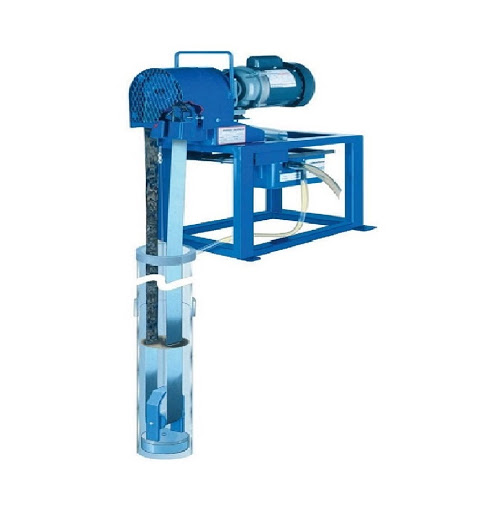

The PetroXtractor Belt Skimmer System is a reliable and cost-effective equipment for removing floating oil, fuel, and other hydrocarbons from water where access to the fluid surface is limited. Ideal for removing floating oil and other hydrocarbon liquids from existing monitoring or remediation wells.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe Petroextractor belt skimmer is a system designed for the efficient recovery of oils and floating hydrocarbons on water surfaces, using a continuous belt mechanism that allows for selective extraction of contaminants with minimal water intake. This type of skimmer is especially effective in applications where continuous and controlled recovery is required, even with thin layers of hydrocarbons.
Manufactured with materials resistant to chemicals and corrosion, the Petroextractor offers high durability and reliability in environmental and industrial settings. Its compact design facilitates installation and field operation, enabling environmental technicians and remediation personnel to achieve consistent and representative results in prolonged operations.
The Petroextractor belt skimmer is ideal for remediation projects, spill control, and environmental monitoring, providing an effective and low-maintenance solution for the recovery of floating hydrocarbons.
- Small assembly and operation area.
- Chip-resistant powder coating finish
- Custom belt lengths and materials
- Easily mounts on a flat surface
- Oil and fuel-resistant belt and cleaners
- Weighted and tied tail pulley • Quick cleaning with minimal maintenance.
- Can be customized to application needs
- The oleophilic belt is designed to operate in extreme conditions and withstands temperatures up to 100ºC (A.I.)
- The water pH can be from 6 to 10. The Abanaki PetroXtractor comes with a head pulley guard, adjustable wiper brush set, foam belt, rear pulley, fractional hp, 110 VAC, 60 Hz gear motor, and assembly/maintenance instructions. The equipment motor is fractional hp TEFC, 115VAC, single-phase, 60 Hz gear motor, which includes a 245 cm cord with electrical plug.
- Optional: 50 Hz; 3 phases; explosion-proof; 12VDC; and pneumatic.
- Recovery of floating oils and hydrocarbons
- Environmental remediation of water bodies
- Spill control and cleanup
- Environmental and industrial monitoring
- Field operations and long-term projects
The oleophilic tape is composed of a flexible polymer that allows it great mobility. A counterweight is located at the lower end of the belt to tighten it, this depends on the length of the belt and the viscosity of the product. Thanks to an additional motor and a pulley system, the belt will be in continuous rotation, recovering the hydrocarbon through a selective methodology. The customer will define the width and depth of the belt, which will depend on the required flow rates, the diameter of the piezometer and the viscosity of the product. Recovery rates Belt width Recovery rate 2.5 cm (for 1 inch) 11 L/h 5 cm (for 2 inches) 23 L/h 10 cm (for 4 inches) 45 L/h
- Allows existing monitoring wells to be used as recovery wells.
- The portable unit can be easily transported from one site to another.
- A single unit separates oil and lifts it up to 100 feet without a pump.
- Recovers very little water (unlike other skimmers).
- Maintains skimmer process efficiency with fluctuating water levels.
- The tail pulley is secured to the frame to prevent accidental loss.
- Easy assembly, quick cleaning with minimal maintenance.
- Belt materials adapt to any application.
