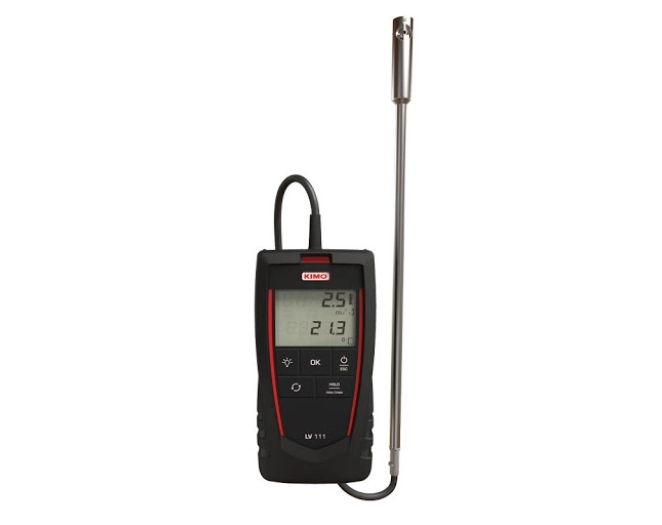

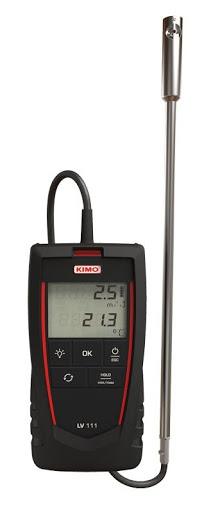

Kimo LV111 Anemometer
Kimo LV111 Anemometer
Reference:
3100000000095
Kimo Anemometer LV111: portable thermo-anemometer with 14 mm vane probe to measure velocity, air flow, and temperature, ideal for HVAC, ventilation, and facilities control
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe Kimo LV111 anemometer is a specialized portable instrument for accurately and reliably measuring airspeed, flow rate, and ambient temperature in HVAC applications, ventilation, and air system control. This vane thermo-anemometer with Ø 14 mm probe is designed to provide detailed readings even in narrow ducts or hard-to-reach areas, facilitating diagnostics and optimization tasks for climate control systems, industrial facility maintenance, and environmental monitoring.
Equipped with advanced features such as flow rate calculation, automatic averaging, value hold (HOLD), and maximum and minimum values, this instrument allows the user to precisely analyze variations in airflow and temperature, presenting the information on a multi-line LCD screen with multiple measurement units
- Measured parameters: air velocity, flow rate, and temperature.
- Velocity range: from 0.80 m/s to 25 m/s.
- Flow rate range: up to 99 999 m³/h (depending on configuration and accessories).
- Temperature range: –20 °C to +80 °C (depending on probe).
- Additional functions: flow rate calculation, automatic averaging, HOLD function, and recording of minimum and maximum values.
- Display: LCD (multiple lines with unit readings).
- Protection: ABS housing with index IP54 (resistant to dust and splashes).
- Power supply: 4 AAA LR03 1.5 V batteries.
- Weight: approx. 390 g.
The surface of the duct is entered in the portable anemometer and from the time or point averaging it will show the average flow. To calculate the flow simply enter the diameter of the duct in the portable anemometer and from the time or point average it will show the average flow. Clicking on the hold function keeps the current measurement value on the screen or accesses the minimum and maximum values.
- Precise and versatile measurements: Thanks to its small-diameter vane probe and specific sensors, the LV111 offers reliable measurements of air velocity and temperature, even in ducts and confined spaces.
- Practical field functions: Includes automatic flow calculation, averaging, min/max values, and HOLD function, facilitating trend analysis and real-time flow condition assessment.
- Adaptable units: Allows selection of multiple measuring units (m/s, km/h, fpm, m³/h, cfm, etc.), making it versatile for different application standards.
- Robust and portable design: Its sturdy casing with IP54 protection and compact size make it convenient to use in the field for extended periods.
