GEOSUB 60m 12V 2” electric pump rental
GEOSUB 60m 12V 2” electric pump rental
Reference:
1000000000068

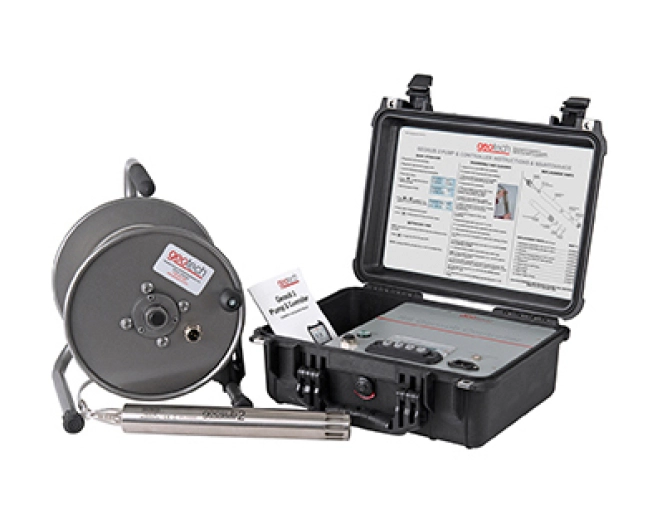

The GEOSUB electric submersible pump is a portable and robust groundwater sampling pump, designed to extract water from wells up to 60 m deep with 12 V DC power supply. It is ideal for environmental projects, hydrogeological monitoring, and preliminary purging before sampling, offering reliability and ease of use in demanding field conditions.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe GEOSUB pump uses a single-stage submersible design with stainless steel components and durable materials to ensure long service life and facilitate decontamination between uses. It is powered by a 12 V battery, making it a practical solution for field operations without electrical grid access.
The equipment is installed inside the well, and by supplying power from a controller or external battery, it drives the water to the surface through the discharge pipe.
- Submersible stainless steel design: Durable construction that facilitates cleaning and durability even in challenging well conditions.
- Operating depth up to 60 m (200 ft): Allows access to groundwater in deep wells for sampling or purging.
- 12 V DC power supply: Ideal for field use with vehicle batteries, generators, or specific controllers.
- Adjustable flow rate for low-flow sampling: Allows suitable pumping speeds for representative sampling techniques, even with low flow rates (up to ~10 mL/min).
- Dry-run protection: The pump can incorporate user-configurable safety functions to protect the motor if no water is available.
- Integrated reel and cable options: Available with safety cable and Geo Reel for more comfortable deployment and retrieval in the field.
The GEOSUB is a versatile option for:
- Groundwater sampling in monitoring wells before and during water quality campaigns.
- Well purging to remove stagnant water and obtain representative samples from the aquifer.
- Environmental monitoring and hydrogeological studies where reliable and adjustable pumping is required.
- Remediation projects where extraction of water or dissolved contaminants is needed
Controller Operation
The user interface is programmable and easy to use, offering precise control over flow rate during groundwater sampling. The specific conditions of each site can be easily saved and retrieved for more efficient recurring sampling.
The durable and easy-to-connect cables make it portable and easy to install.
Additionally, the control includes a user-programmable application for test protection.
Specifications
- Input Power Range
- 100-130 Volts AC
- 50/60 HZ 310 Watts
- 4.2 nominal maximum load amperes 115V AC
- 200-250 Volts AC
- 50/60 HZ 310 Watts
- 2.1 nominal maximum load amperes 230V AC
- Variable Output Power 0-46V DC less than 300 Watts
- Output Power with Max Voltage 10 maximum amperes
- Operating Temperature -20°F to 100°F (-29°C to 38°C) in ambient temp
- Humidity Up to 90% humidity
- Unit Weight 7.46 kg
- Unit Size 41cm L x 33cm W x 18cm H
- Input Protection 5A CB
- Portable and easy to install: Powered by 12V batteries, no mains power needed on site.
- Robust and durable: Sturdy materials ensure reliable operation in challenging environments.
- Precise flow control: Allows representative sampling techniques and efficient purging.
- Available accessories: Integration with portable reels and safety systems to facilitate field work.
