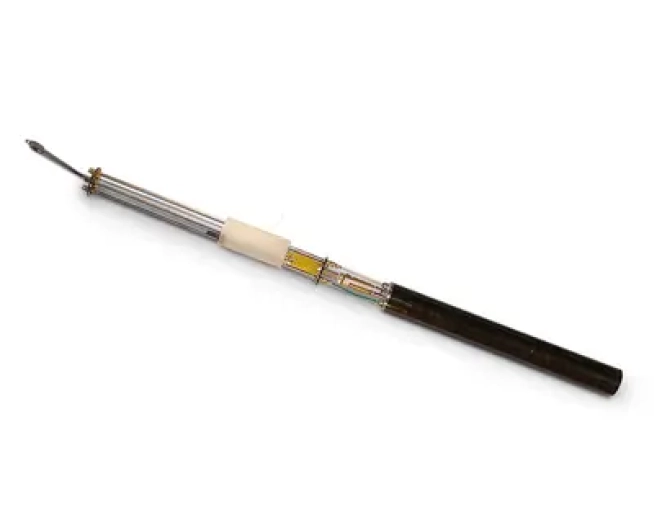

Genie 24" QED pump and skimmer system
Genie 24" QED pump and skimmer system
Genie® skimmers are safe, reliable and complete systems for removing floating LNAPL layers from wells. The skimmers come in two versions: auto and programmable. Both the SPG and SOS® AutoGenie™ Genie® and Programmable Genie® skimmers are air-operated selective LNAPL removal systems with a high suction pump and a floating inlet designed to follow the LNAPL layer as the ground water level fluctuates.
The Genie 2-4" QED Pump and Skimmer System is a portable equipment designed for the efficient recovery of hydrocarbons and floating oils in bodies of water, combining an extraction pump with an adjustable 2 to 4” skimmer. This system allows for continuous and controlled extraction of contaminant liquids, optimizing field recovery and sampling.
Manufactured with materials resistant to chemicals and corrosion, the Genie 2-4" QED ensures durability and reliability in demanding environments, from rivers, lakes, or ponds to industrial applications. Its modular design facilitates transportation, quick installation, and safe operation, enabling environmental technicians and remediation personnel to obtain consistent and representative results.
This system is ideal for environmental monitoring projects, spill cleanup, and hydrocarbon recovery, providing a controlled and efficient flow that maximizes contaminant extraction, even in confined spaces or hard-to-reach sites.
- All Genie® skimmer systems pump the LNAPL using a special bladder pump with high suction capability, positioned above the floating inlet section of the system.
- The use of a bladder pump eliminates air contact with the LNAPL fluids, minimizing emulsification and eliminating VOC emissions.
- The AutoGenie™ uses an integral pneumatic timer to control the pump fill and discharge times
- The Programmable Genie uses an electronic controller mounted outside the well to allow adjustment of pump cycles and off times
- A complete line of matched accessories is available to help with installation and performance, including in-well tubing, well caps, ON/OFF timers, LNAPL collection tank full shutoffs and other items
- Mining
- DOD – DOE Sites
- Remediation Sites
- Oil Refineries and Petrochemical
- Industrial Sites
The QED Genie 2-4" System combines a 2 to 4" adjustable mechanical skimmer with an extraction pump, allowing for the continuous recovery of floating hydrocarbons. The skimmer captures the surface liquid while the pump maintains a constant flow to the storage or sampling system.
Its design enables safe and efficient operation, ensuring representative samples and maximum recovery of contaminants without the need for complex additional energy, ideal for fieldwork in remote or industrial settings.
- Efficient recovery of oils and floating contaminants
- Portable and easy to deploy in any environment
- Controlled extraction flow for representative sampling
- Durable and resilient in demanding field conditions
- Optimizes time and effort in recovery operations
- Compatible with environmental and industrial remediation applications
Models
-
Genie Pump 24" QED
Ref. 5200000000074
-
Skimmer for autogenie pump 2" SOS2 61cm
Ref. 5200000000075
-
Skimmer for autogenie pump 2" SPG2 24" 61cm
Ref. 5200000000076
-
QED SOS2 Oleophilic Passive Skimmer - 2" 900 cc
Ref. 5200000000077
