Basic kit for soil sampling
Basic kit for soil sampling
Reference:
4000000000124
The original AMS gas vapor probe was designed to extract vapor samples around underground fuel tanks or any container containing a volatile liquid that could potentially contaminate the ground if a leak occurs.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe Basic Gas Sampling Kit is a portable set designed for the simple, safe, and representative sampling of gases and vapors in the field. It is especially intended for environmental, industrial, and safety applications, allowing controlled extraction of gases for subsequent analysis in the laboratory or on-site measurement.
The kit includes the essential components for reliable sampling, such as hoses, connectors, filters, and control accessories, organized to facilitate its use and transport. Its compact and robust design makes it ideal for fieldwork, technical inspections, and monitoring campaigns, even in demanding environments.
The Basic Gas Sampling Kit is a practical solution for preliminary evaluations, routine checks, and environmental studies, ensuring consistent and reproducible results.

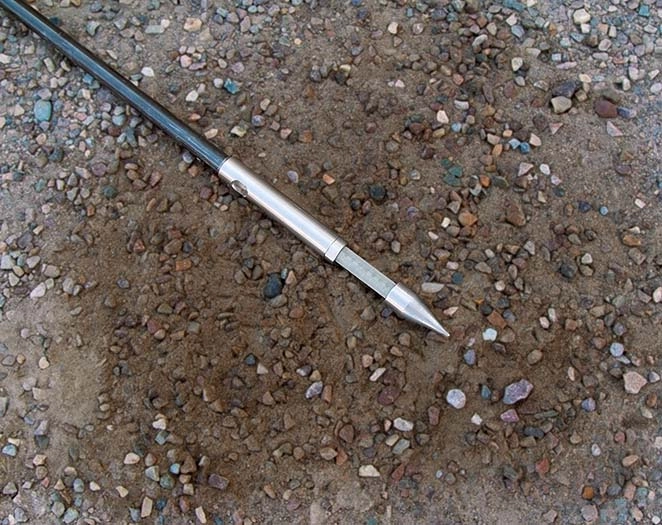

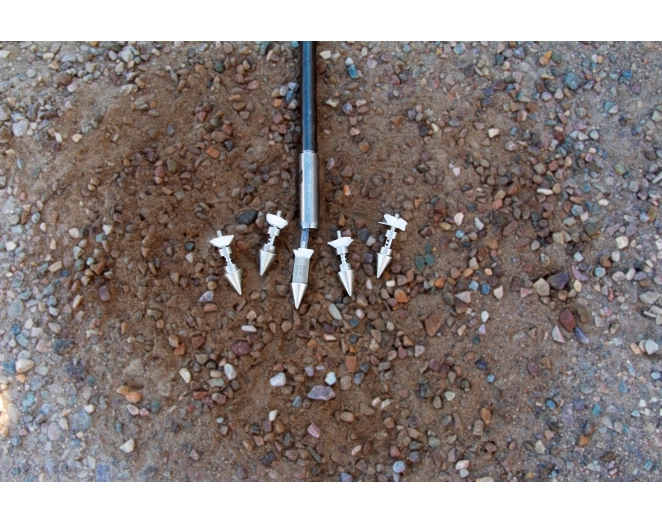

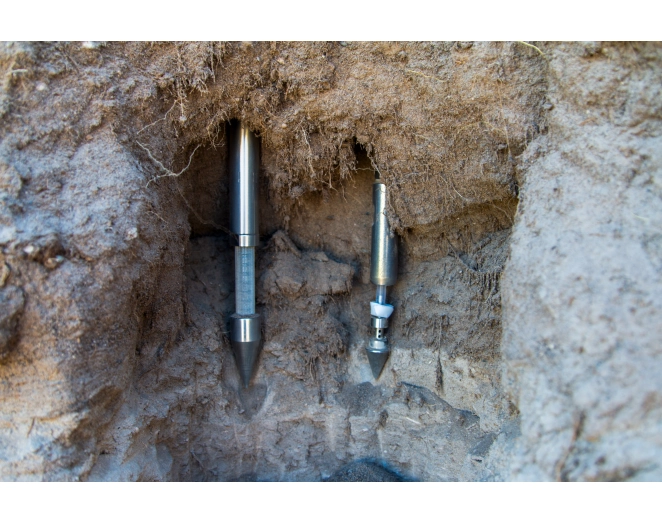

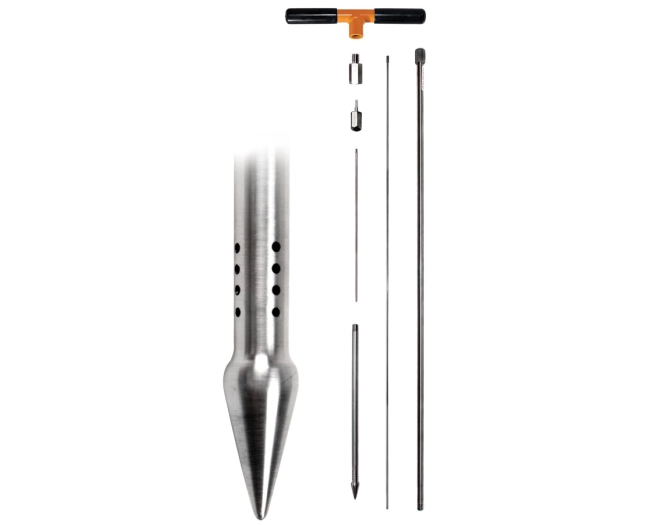

AMS’s “original” gas vapor probe can sample vapor in soils at depths of 12 ‘depending on soil conditions. This kit is an excellent choice for shallow gas vapor sampling in soft soils. The kit includes a base section with a probe tip and ground gas access holes at the top. An included tipped liner rod is placed inside the base section. AMS also offers the patented dedicated gas vapor tip and AMS Retract-A-Tip for soil gas sampling as well as shallow groundwater sampling.
- Environmental sampling of gases and vapors
- Air quality assessment
- Emissions monitoring and industrial safety
- Pollution studies and environmental control
- Technical inspections and measurement campaigns

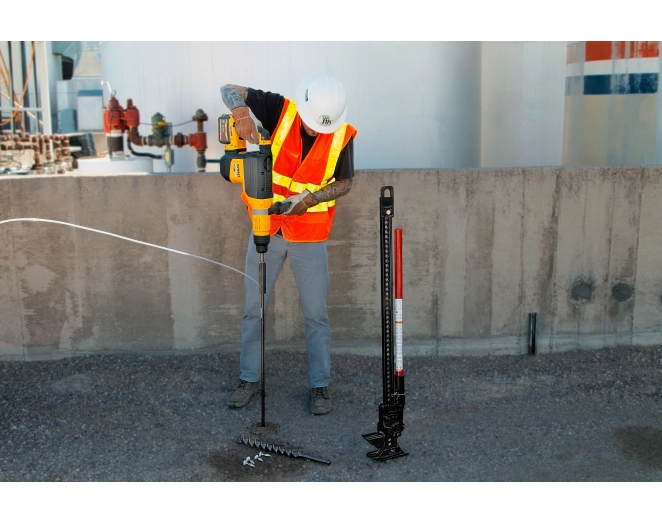

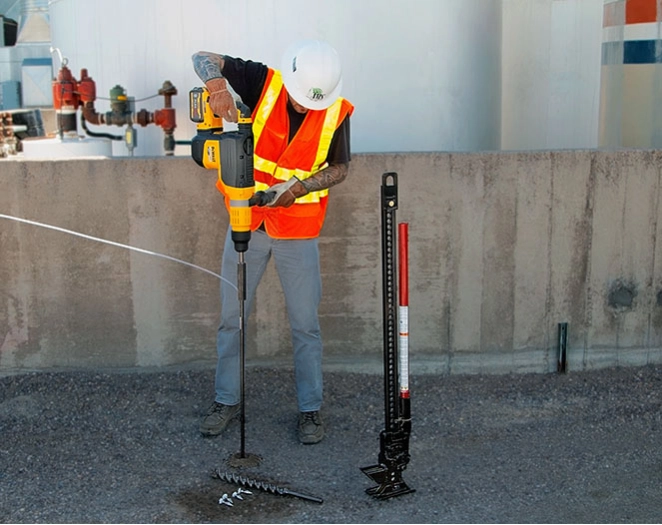

The tip of the probe is driven into the ground one of two ways; with the 10 pound slide hammer attachment or (if soil allows), it can be manually pushed into the ground with a 10 ”cross handle. Stainless steel extensions are available for gas vapor probe. These extensions come in either 3-foot or 4-foot lengths. The extensions are coupled by a 5/8 ”OD coupling with a ½” national fine thread. When the unit’s extensions are attached, the ends of the extensions touch each other within the attachment. By doing this, the force exerted in driving the sampler is concentrated on the “extension walls”. By adding extensions, the probe can be inserted to depths of up to 12 feet (3.6m) or more depending on the lithology of the soil. When attaching the extensions, we suggest that they should be tightened to approximately 30 feet. pounds of torque. Each GVP extension comes equipped with a 3/16 ”Internal Rod. The coating rod is also constructed of stainless steel. With the liner bar installed inside the extensions, the small coupling protects the steam inlet holes from filling in with dirt and plugging the interior of the extensions where gas from the floor will eventually flow. After the probe has inserted to the desired depth, the drive end and the inner casing rods are removed from the sampler. A steam extraction accessory is installed on the probe. The steam extraction fitting includes a 3/16 “barbed tube adapter connector. One length of Teflon or plastic tubing can now be pushed over the barbed adapter. The other The end of the tube can be connected to a vacuum pump or SUMA Vessel to extract the vapor sample from the soil.
