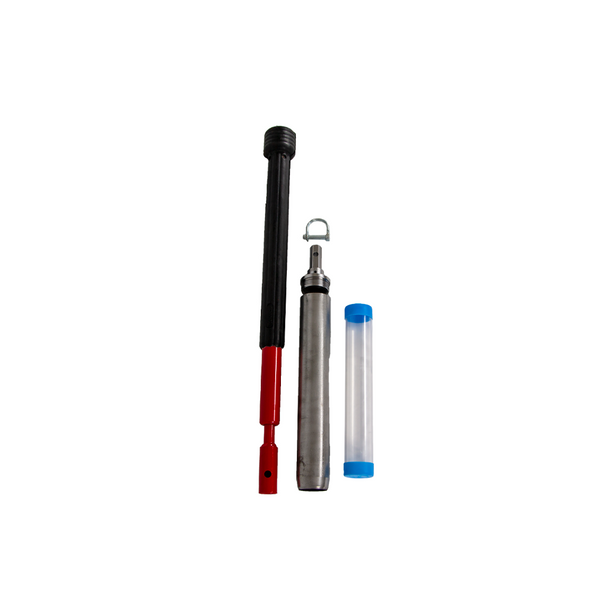

2" X 12" Soil Core Sampler Complete, Hex Quick Pin

Description

The 2" x 12" soil core sampler, complete with a hex quick pin, is designed for the precise extraction of intact soil cores, being an essential tool in geotechnical work, environmental studies, agriculture, quality control of land, and laboratory analysis.

This sampler ensures maximum reliability and durability, allowing representative samples to be obtained with minimal alteration of soil structure. Its 2-inch diameter and 12-inch length (≈30 cm) make it ideal for surface and semi-deep sampling, facilitating the stratigraphic evaluation of the terrain.

The hex quick pin system allows a secure connection and quick assembly with extensions, handles, or AMS slide hammers, optimizing fieldwork and reducing operator effort.

Features

• Core diameter: 2" (≈51 mm)
• Tube length: 12" (≈30 cm)
• Quick-connect hex pin system for secure connection
• Designed for extraction of intact cores
• Made of high-strength steel
• Compatible with extensions, handles, and AMS accessories
• Easy disassembly for sample extraction and preservation

Applications

• Intact soil core sampling
• Geotechnical and environmental studies
• Laboratory analysis
• Soil layer assessment
• Ground quality control

Delivery format

Spare Parts:

• (1) 2" soil core sampling cap, hexagonal quick pin
• (1) 2" x 12" soil core sampling sleeve
• (1) 2" x 12" plastic liner
• (2) 2" plastic end cap
• (1) Standard slide hammer, hexagonal quick pin

Accessories:

• (1) 18" rubber-coated cross handle, hexagonal quick pin

Performance

• Insert an appropriate liner if necessary.
• Thread the sample cap and sample cup together and tighten.
• Attach your extension to the top of the sampler.
• Place a cross handle or sliding hammer on the extension and tighten.
• To collect a sample using a Cross Handle, turn the Cross Handle clockwise while pushing down. If using a sliding hammer, raise the sliding hammer and let it drop to drive the sampler into the ground. Remove the sampler by pulling up on the handle or hammering it back.
• Disconnect the sampler from the extension. Keeping the sampler vertical, remove the sampler cap.
  If using a liner, remove the liner and place plastic caps on each end of the liner.
• Clean the sampler and ensure all soil particles are removed from the threads. Use a cleaning brush if necessary.

Advantages

Representative samples

• Maintains the natural soil structure.
• Ideal for physical, chemical, and geotechnical analyses.

Speed and ease of use

• The quick hexagonal pin allows assembly and disassembly of the equipment in seconds.
• Reduces fieldwork times.

Professional construction

• High resistance to wear and impacts.
• Designed for intensive use in demanding conditions.

Wide applications

• Suitable for geotechnics, environment, agriculture, civil engineering, and soil control.
• Used by engineers, technicians, laboratories, and environmental consultants.
