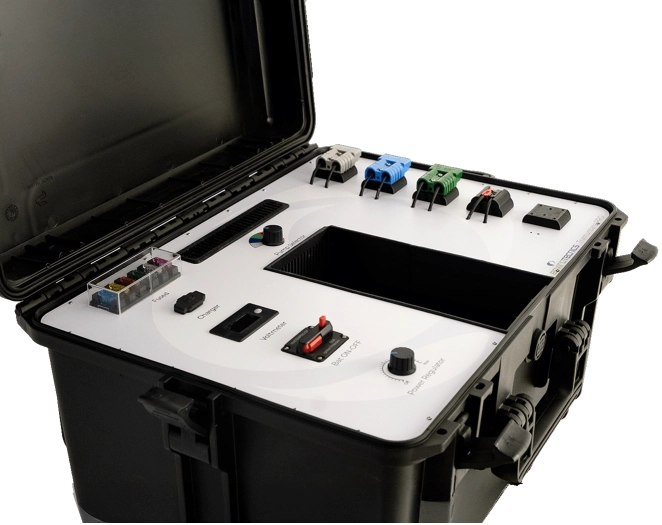

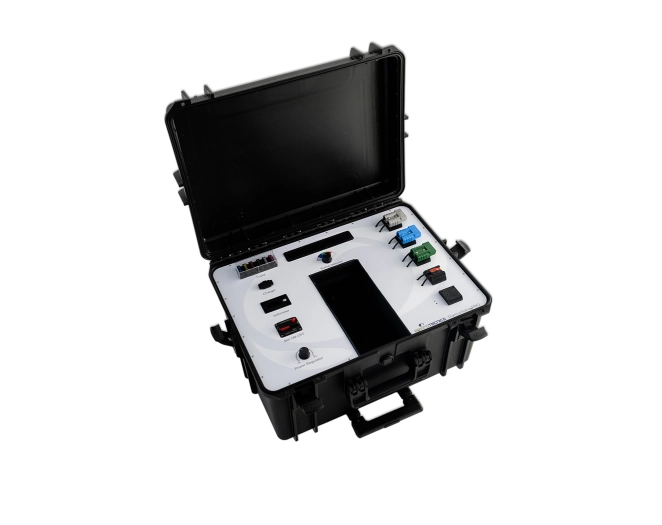

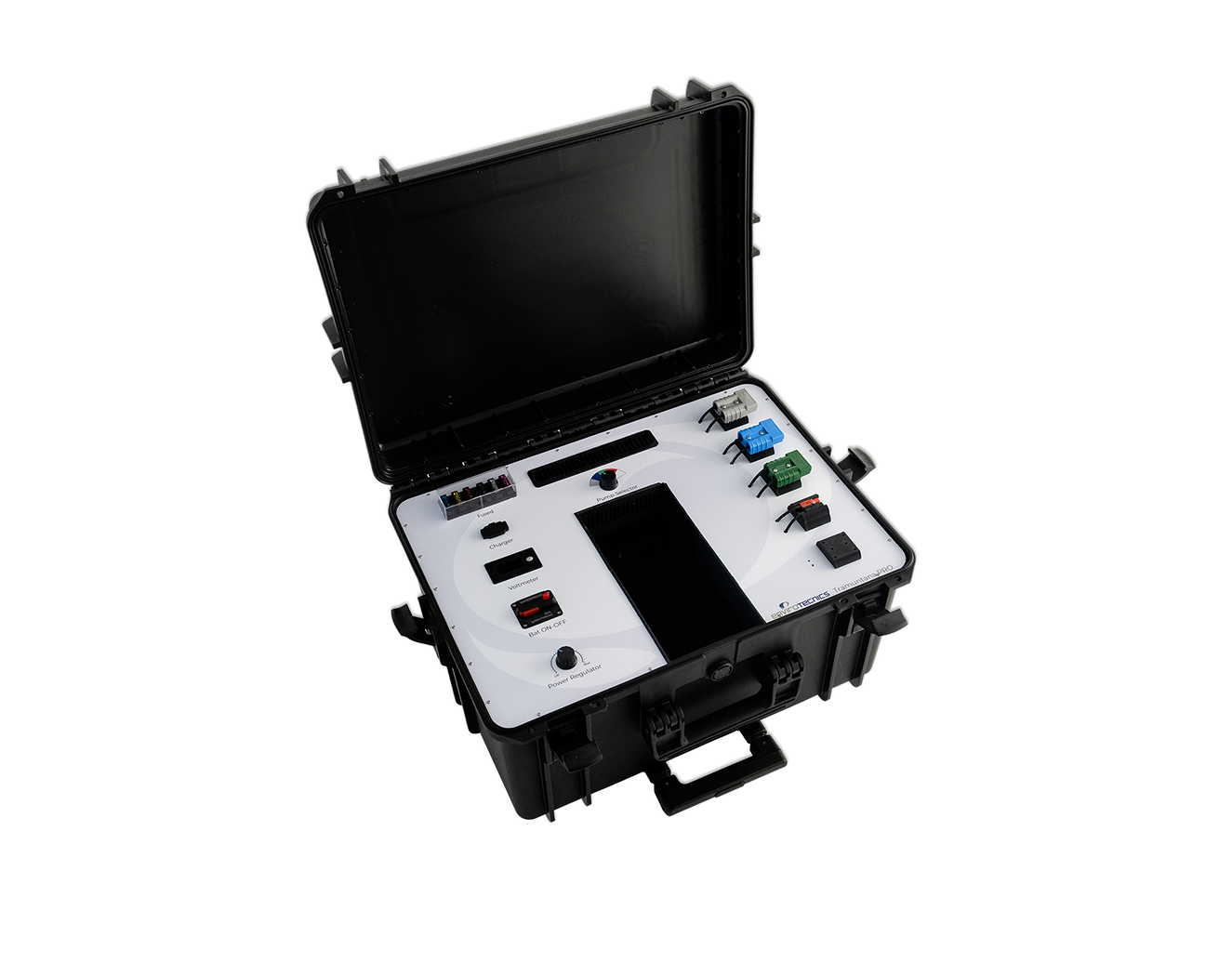

Tramuntana XL 12V Pump Controller Case
Tramuntana XL 12V Pump Controller Case
Reference:
2100000000281
The Tramuntana XL is a portable power and control case designed for the safe and efficient use of 12V PROACTIVE® submersible pumps, offering maximum autonomy, robustness, and precise control in demanding fieldwork.
Do you have any doubts? Contact us and we'll help you.
Ask for informationThe Tramuntana XL Feed and Control Case is a professional solution designed for field pumping operations where reliability and autonomy are critical. Manufactured in a reinforced waterproof case with IP67 protection, it ensures safe operation even in harsh environmental conditions.
Equipped with two high-capacity lithium LiFePO₄ batteries, the Tramuntana XL provides long working days without the need for external power. Its intuitive control system, featuring color-coded Anderson connectors and pump model selector, facilitates a quick and secure connection, reducing operational errors.
In addition, it includes power regulation, low flow control, and monitoring via Bluetooth app, allowing the user to optimize energy consumption and always know the available autonomy. Its robust and portable design makes it an indispensable tool for consultancies, remediation companies, and environmental laboratories.
- Reinforced watertight case IP67 (555 × 428 × 306 mm)
- Two LiFePO₄ batteries of 12.8 V – 50 Ah (25.6 V total)
- Color-coded Anderson connectors
- Pump model selector
- Power regulator and low-flow rate adjuster
- Integrated digital voltmeter
- Bluetooth app for monitoring and autonomy estimation
- Main 50 A fuse and individual fuses per pump
- Automatic disconnection system when the case is closed
- Weight: 15.5 kg
- Options: wheels with extensible handle and 24 V – 8 A battery charger
- Sampling and purging in wells and piezometers
- Hydrogeological tests
- Pumping in remote or difficult-to-access areas
- Extended environmental monitoring campaigns
- Fieldwork for consulting firms and remediation companies
The Tramuntana XL powers and controls 12V PROACTIVE® submersible pumps through a high-capacity internal battery system. The user selects the pump model using the color-coded selector and adjusts the power or flow rate according to the job requirements.
The Bluetooth app allows monitoring of the system status and estimation of the remaining autonomy, ensuring efficient and safe use of available energy.
- Maximum field autonomy without need for electrical network
- Simple and intuitive use, even in demanding environments
- High resistance and waterproofing for outdoor work
- Precise control of flow and energy consumption
- Full compatibility with 12 V PROACTIVE® pumps
- Easy maintenance with batteries replaceable by technical service
